SN/MG Series Solenoid Valves For R410A

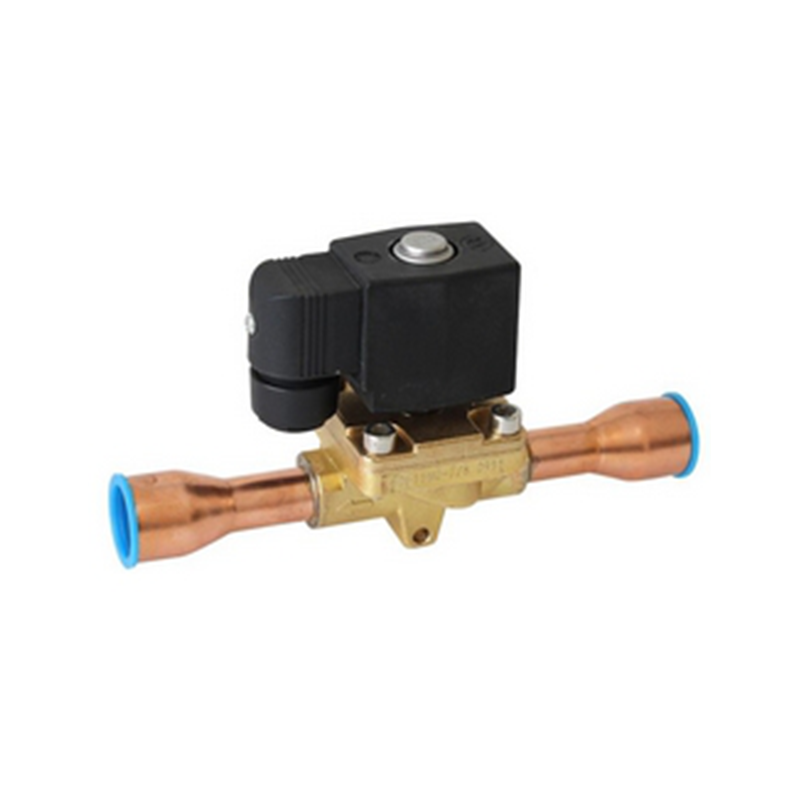

SN/MG Series Solenoid Valve is specially designed for R410A system,

they are used for liquid, suction or discuarge gas refrigerant service.

◆SN/MG is servo pilot opearted solenoid valve for liquid,suction and hot gas application

◆Full range of solenoid valves for refrigeration and air conditioning application

◆Wide choice of coils for AC and DC

◆Suitable for R410A refrigerants、HFC&HCFC

◆Opening Pressure Dif:

AC:0.05-30bar

DC:0.05-24bar

◆Max working pressure:45bar

◆Temperature of Medium:-40℃ to +105℃

◆Environmental Temperature：-40℃ to +55℃

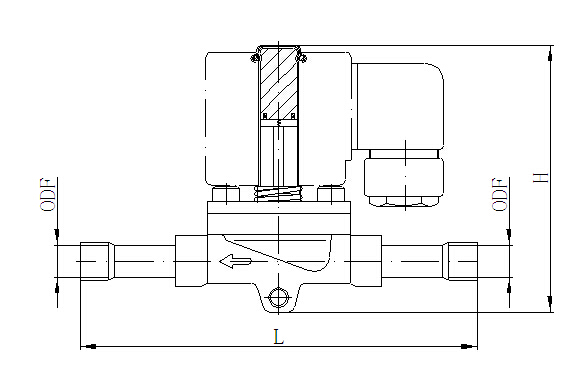

Model 型号	Connection Size 接管尺寸(ODF)		Opening diff pressure(bar) 阀开启压差			Kv Value Kv值 m3/h	Max working pressure ***安全工作压力(bar)	Dimensions(mm) 外形尺寸			Rated power 电源种类
	mm	in	Min ***小	Max(liquid) ***(水)				L	W	H	AC	DC
				50/60Hz AC 交流电压	DC 直流电压
SN/FDF-3G	6	1/4	0	28	24	0.27	45	117	31	76	24 36 110 220	12 24 110 220
	10	3/8
SN/FDF-6MG	10	3/8	0.05			0.8		127	32	80
	12	1/2
	16	3/8
SN/FDF-8MG	10	1/2				1		137	38	88
	12	5/8						137
	16	1/2						162
SN/FDF-10MG	12	5/8				1.8		137	45	88
	16	5/8						166
SN/FDF-15MG	19	3/4				3		174	52	96
	22	7/8
SN/FDF-20MG	22	7/8				5		190	58	115
	22	7/8 (increase length)						230
	28	1 1/8						250
SN/FDF-25MG	28	1 1/8				9.8		236	72	119
	28	1 1/8
SN/FDF-32MG	28	1 1/8				15		281	86	133
	35	1 3/8
SN/FDF-40MG	35	1 3/8				25		312	126	158
	54	2 1/8
