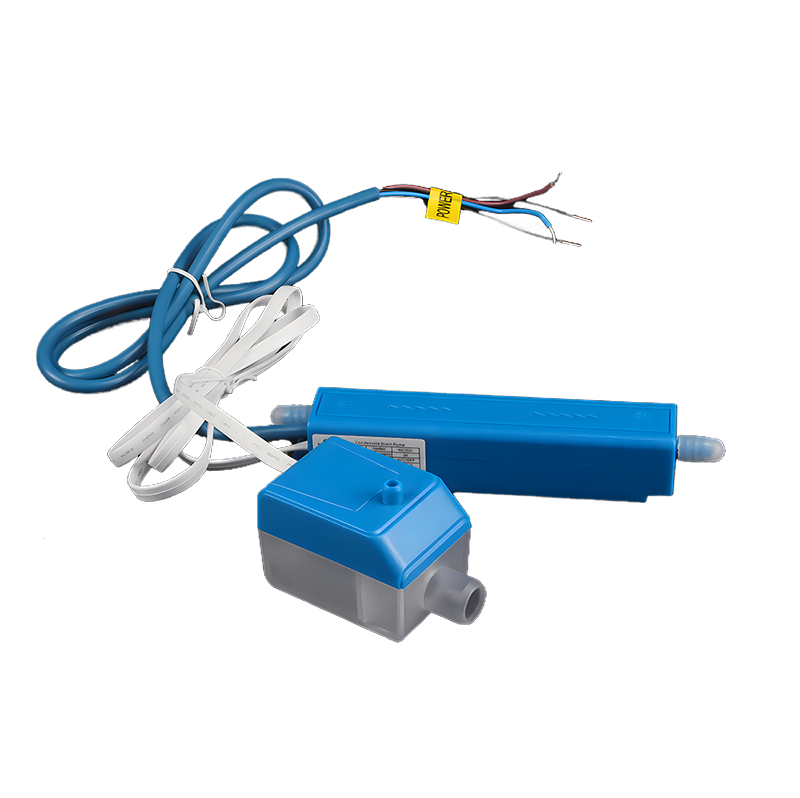

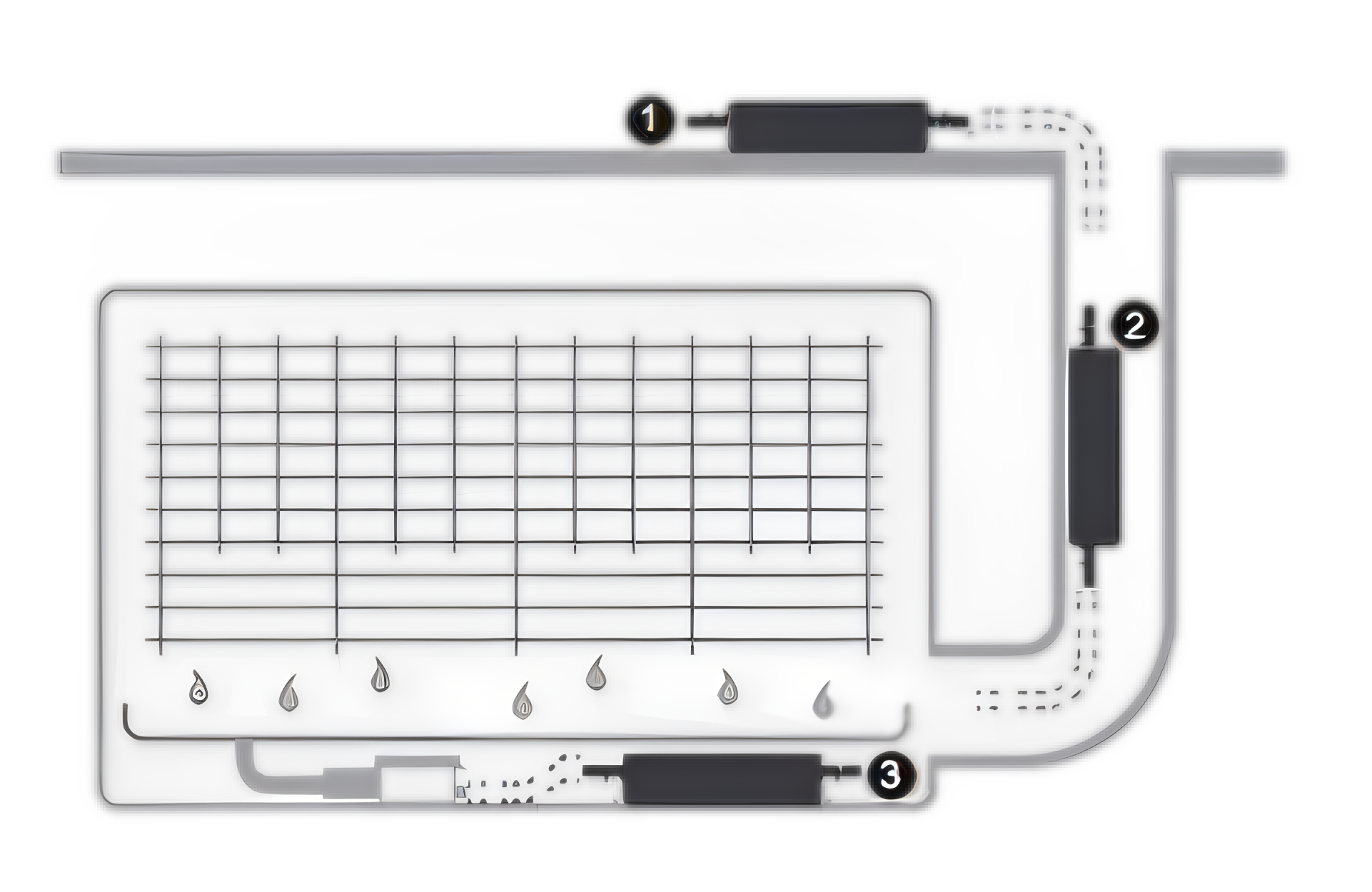

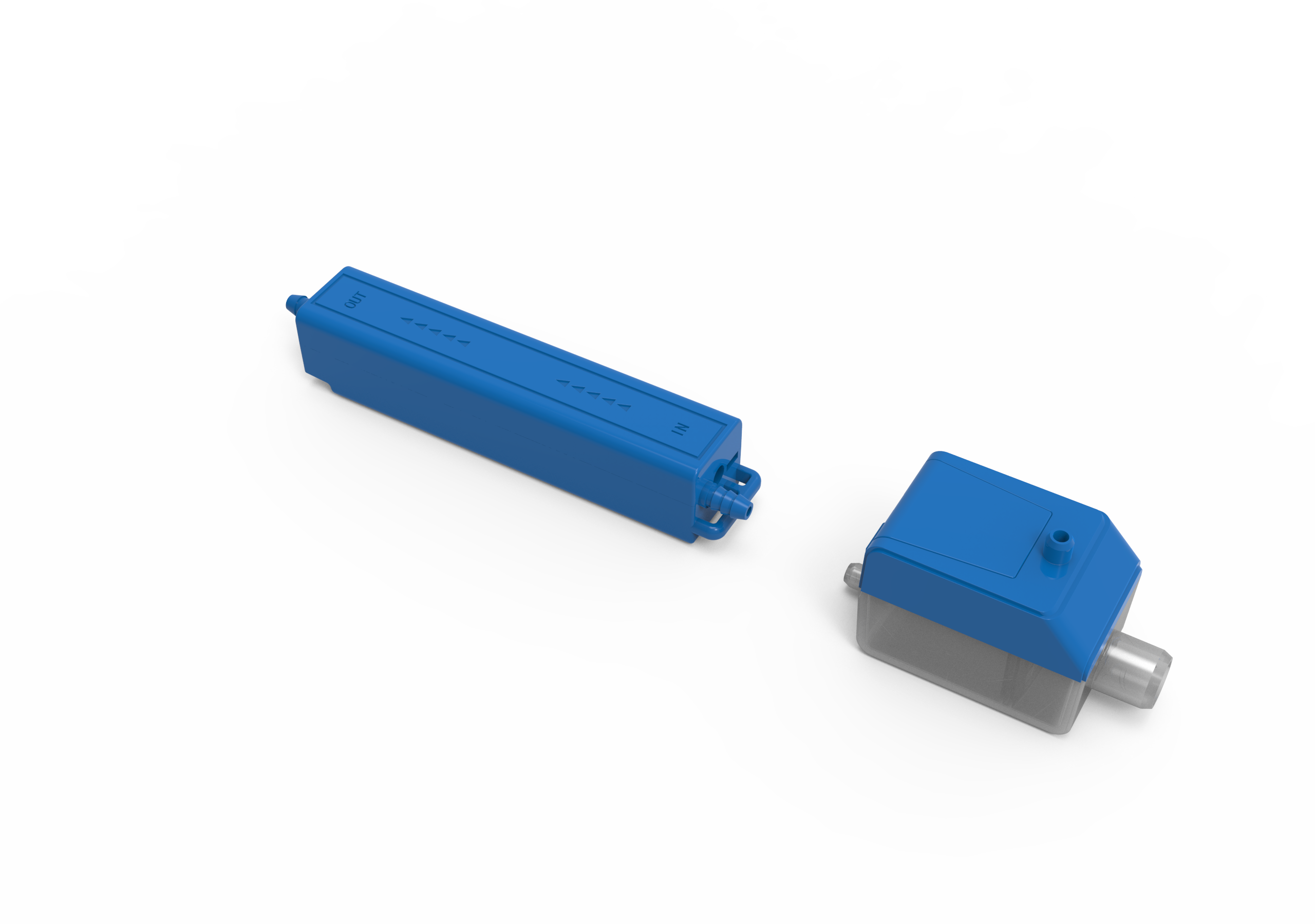

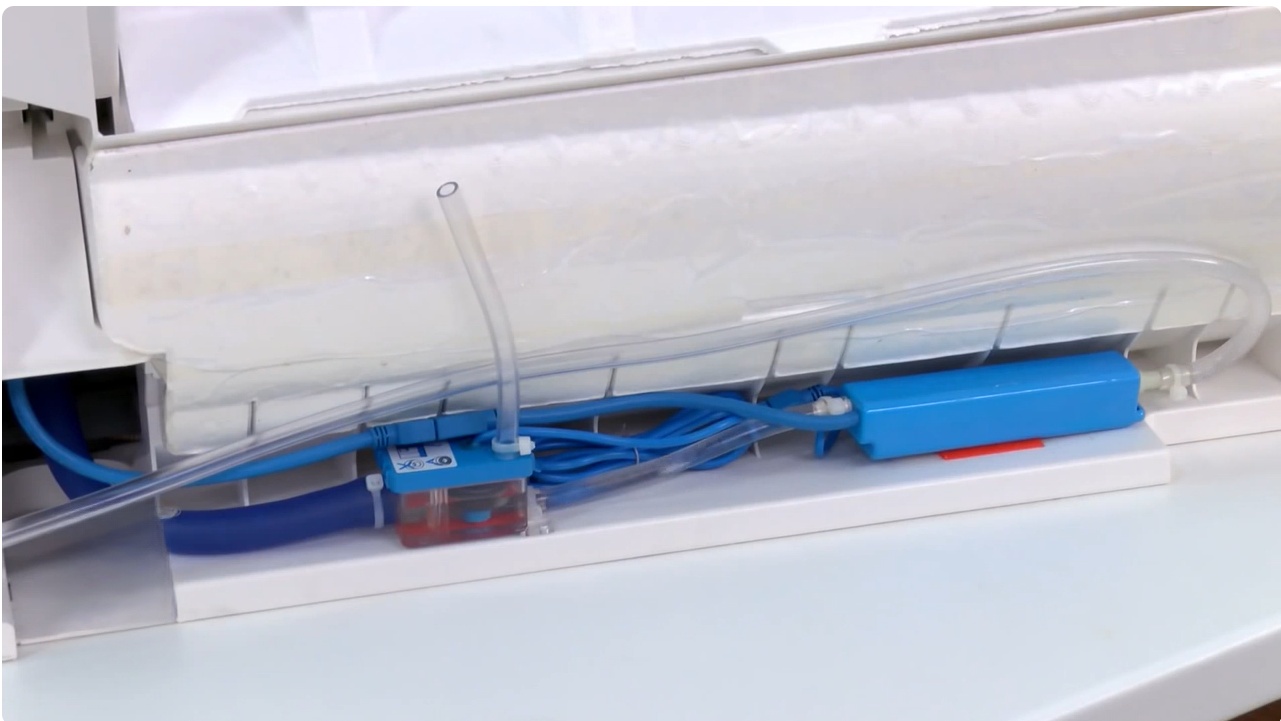

The SUN15F condensate pump adopts slim body design, it is slimmest mini pump. Specially design for narrow spaces, it is mainly installed in back interior of split air conditioners. It also can be applied in ducted air conditioner, cassette air conditioner.Suitable for the device which cooling capacity under 30,000 btu/hr.
Built-in safety switch and applied unique motor balance technology, ensuring that the pump can operate silently for a long time and guarantee the safety drainage.
Compact and Flexible, Silent and Durable
·Compact, flexible installation
·Quick- connect, convenient maintenance
·Unique motor balance technology, reduce vibration
·High quality denoise design, better user experience
Model | SUN15F |
Voltage | 100v-230V-/50-60Hz |
Suction Lift(Max) | 2m(6.5ft) |
Discharge Head(Max) | 7m(23it) |
Flow Rate(Max) | 15L/h(3.2GPH) |
Tank Capacity | 35 ml |
Mini Splits up to | 30,000btu/hr |
Sound Level at 1m | 19dB(A) |
Ambient Temp. | 0℃~50℃ |
