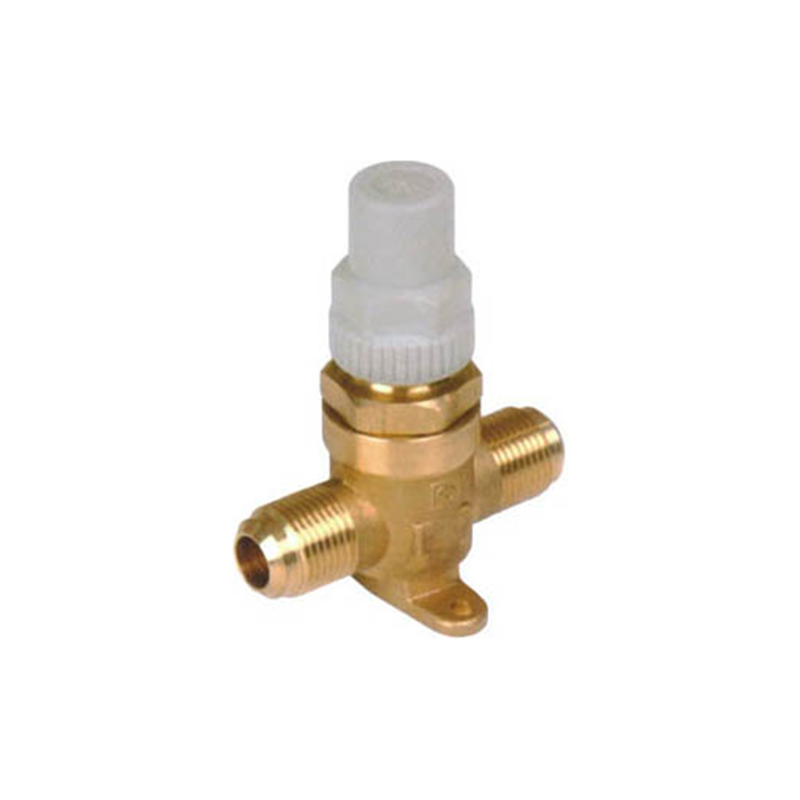

SN Series Capped Valve

SN capped valve can be used in commercial refrigeration system,civil and industrial

air conditioning equipments.It was designed with automatic closing seal by spindle,

so that this valve can be installed on anywhere of refrigerant flow position of the system

which needs close.

◆Can be used for all flurinated refrigerants and oils.

◆Forged brass body,Hermetic design.

◆Valve plate of polyamide nylon to give complete shut-off with minimum torque.

◆Special designed of valve handle make it shut-off without the use of tools.

◆Extended ends for soldering make installation easy,it is not necessary to dismantle

the valve when soldering.

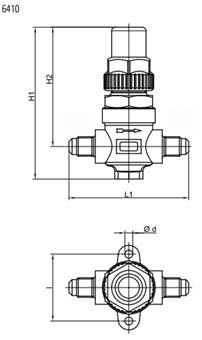

Model型号	Connection 接口		Dimensions（mm）尺寸					Weight 重量(g)	Temperature Range(℃) 温度范围	Max Working Pressure（Bar）最大工作压力	KV Factor KV值（m3/h）
	Inch	mm	H1	H2	L1	d	I
SN-6410/2	1/4"SAE		85.5	67	68	4.5	38	305	-60 to +110	35	0.40
SN-6410/3	3/8"SAE				74			325			1.00
SN-6410/4	1/2"SAE				78			330			1.45
SN-6410/5	5/8"SAE										1.70
SN-6410/6	3/4"SAE		113	89.5	98	6.2	50	695			3.50
SN-6420/2	1/4"ODF		85.5	67	57	4.5	38	300			0.40
SN-6420/3	3/8"ODF				61			305			1.00
SN-6420/M10		10
SN-6420/M12		12			70						1.45
SN-6420/4	1/2"ODF
SN-6420/5	5/8"ODF	16			71						1.70
SN-6420/M18		18	113	89.5	92	6.2	50	700			3.50
SN-6420/6	3/4"ODF							685
SN-6420/M22		22			94			690
SN-6420/7	7/8"ODF
