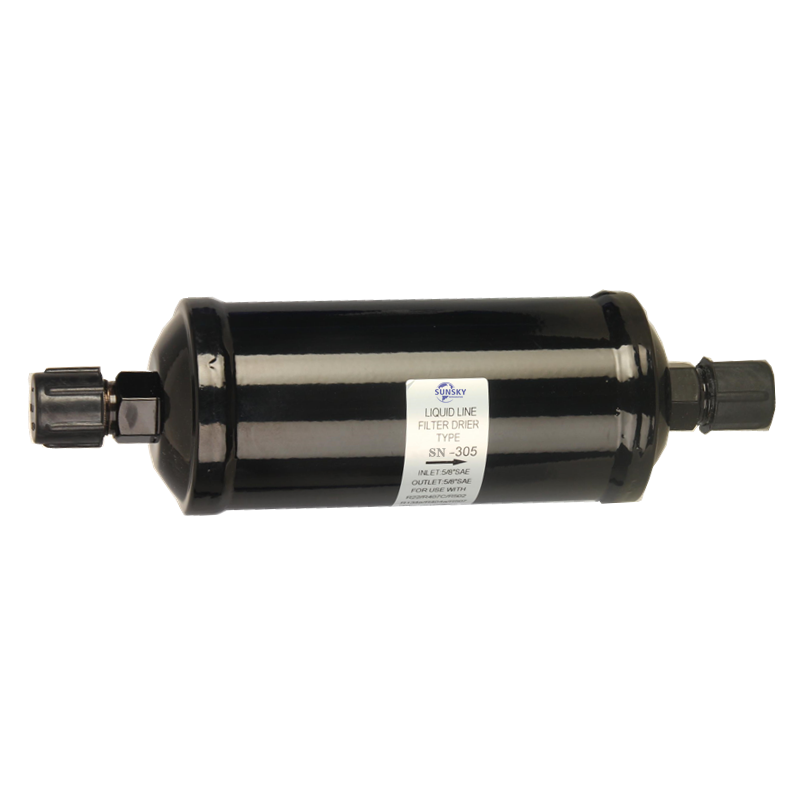

SN/DCL&SN/DML Solid Core Liquid Line Filter Drier

Description：

SN/DML&SN DCL are designed for protecting refrigeration and air conditioning

system from moisture and acid.

SN/DML driers with a 100% Molecular Sieve solid core.SN/DCL driers with a 80%

Molecular Sieve with 20% activated alumina.

Features：

◆ Corrosion resistant epoxy powder paint finish,Salty test up to 400 hour

◆ Allows installation with any orientation provided the arrow is in the fow direction.

◆ 25 μm (0.001 in.) S.S. flter provides high retention with minimal pressure drop.

◆ Available in sizes from 3 to 75 cubic inches.

◆ Thermally stable up to 120 °C (250 °F)


Technical Data ：

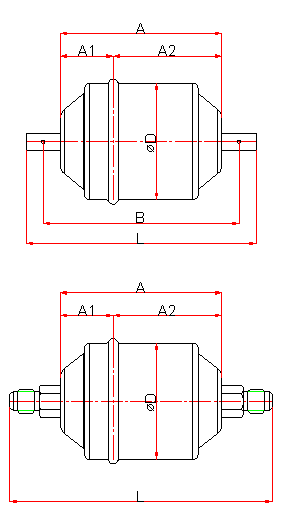

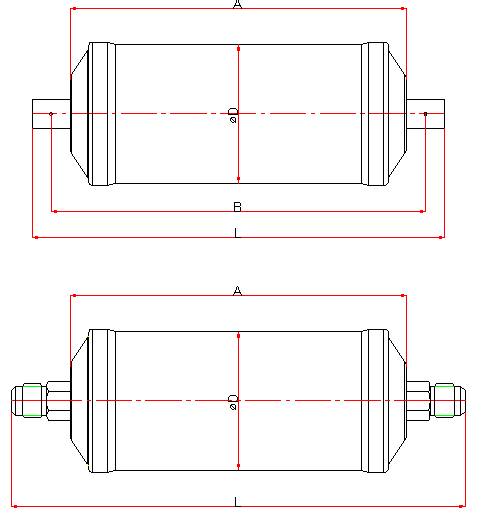

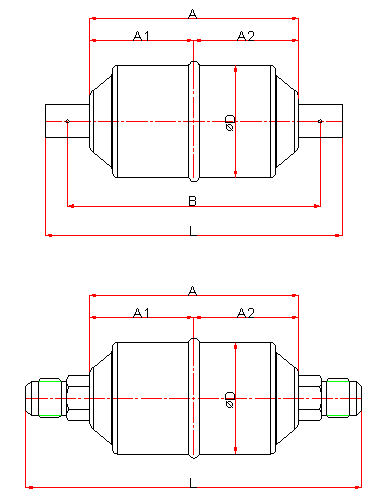

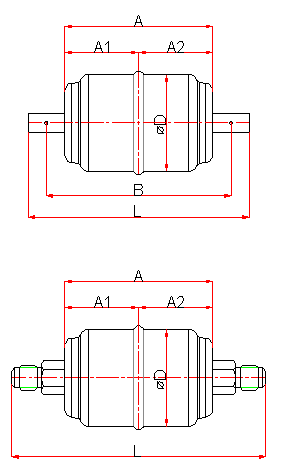

Drawings：

Model 型号		Connection 接口		Liquid Capacity in KW 流体制冷量			Dimension (mm) 尺寸								WT(lbs) 重量(磅）
螺纹 SAE	焊口 ODF	(inch)	(mm)	R134A	R404A R507	R22 R407C R410A	A	A1	A2	B		L		D	螺口 SAE	焊口 ODF
螺纹 SAE	焊口 ODF	(inch)	(mm)	R134A	R404A R507	R22 R407C R410A	A	A1	A2	SAE	ODF	SAE	ODF	D	螺口 SAE	焊口 ODF
SN/DC(M)L-032	SN/DC(M)L-032S	1/4	6	7	5	7	66	33	33	-	82	112	98	Φ43	0.38	0.34
SN/DC(M)L-033	SN/DC(M)L-033S	3/8	10	17	13	19	66	33	33	-	85	123	104	Φ43	0.45	0.36
SN/DC(M)L-052	SN/DC(M)L-052S	1/4	6	7	5	8	75	24.5	50.5	-	91	119	107	Φ54	0.54	0.49
SN/DC(M)L-053	SN/DC(M)L-053S	3/8	10	18	14	19				-	94	132	113		0.61	0.5
-	SN/DC(M)L-054	1/2	12	19	16	20				-	96	-	117		-	0.52
SN/DC(M)L-082	SN/DC(M)L-082S	1/4	6	7	5	8	101	55	55	-	117	145	133	Φ54	0.69	0.64
SN/DC(M)L-083	SN/DC(M)L-083S	3/8	10	19	14	21				-	120	158	139		0.76	0.65
SN/DC(M)L-084	SN/DC(M)L-084S	1/2	12	26	20	29				-	122	166	143		0.84	0.71
SN/DC(M)L-162	SN/DC(M)L-162S	1/4	6	7	5	8	110	55	55	-	126	154	142	Φ75	1.43	1.36
SN/DC(M)L-163	SN/DC(M)L-163S	3/8	10	22	16	24				-	129	167	148		1.47	1.38
SN/DC(M)L-164	SN/DC(M)L-164S	1/2	12	30	22	33				-	131	175	152		1.52	1.41
SN/DC(M)L-165	SN/DC(M)L-165S	5/8	16	43	33	47				-	134	184	158		1.56	1.42
SN/DC(M)L-166	SN/DC(M)L-166S	3/4	19	44	31	48				-	140	182	170		1.61	1.45
-	SN/DC(M)L-167S	7/8	22	45	32	49				-	136	-	172		-	1.47
SN/DC(M)L-303	SN/DC(M)L-303S	3/8	10	21	15	23	186	-	-	-	205	243	224	Φ76	2.59	2.86
SN/DC(M)L-304	SN/DC(M)L-304S	1/2	12	31	22	34				-	207	251	228		2.96	2.91
SN/DC(M)L-305	SN/DC(M)L-305S	5/8	16	45	33	49				-	210	260	234		3.26	2.92
SN/DC(M)L-306	SN/DC(M)L-306S	3/4	19	62	45	68				-	216	258	246		3.33	2.93
-	SN/DC(M)L-307S	7/8	22	62	45	68				-	212	-	248		-	2.96
-	SN/DC(M)L-309S	1-1/8	28	63	46	69				-	207	-	249		-	2.98
SN/DC(M)L-413	-	3/8	10	31	22	34	192			-	-	249	-	Φ89	3.95	-
SN/DC(M)L-414	SN/DC(M)L-414S	1/2	12	32	23	35				-	213	257	234		4.04	3.92
SN/DC(M)L-415	SN/DC(M)L-415S	5/8	16	53	37	58				-	216	266	240		4.06	3.94
SN/DC(M)L-417	SN/DC(M)L-417S	7/8	22	91	65	100				-	218	286	254		-	4.01
-	SN/DC(M)L-419S	1-1/8	28	92	66	101				-	208	-	-		-	4.03
-	SN/DC(M)L-604S	1/2	12	44	32	48	337			-	358	-	-	Φ76	-	4.94
-	SN/DC(M)L-607S	7/8	22	75	54	82				-	363	-	-		-	4.98
-	SN/DC(M)L-609S	1-1/8	28	87	64	95				-	358	-	-		-	5.03
-	SN/DC(M)L-757S	7/8	22	82	60	90	338			-	364	-	-	Φ89	-	6.98
-	SN/DC(M)L-759S	1-1/8	28	94	68	102	338			-	358	-	-	Φ89	-	7

介质 Media		SN/DCL	SN/DML
制冷剂 Refrigerant	HFC(R134a,R404A,R407C,R410A etc.)	Yes	Yes
	HCFC(R22,R502 etc.)	Yes	Yes
油 Oil	矿物油或AB 油 Mineral or AB	Yes	Yes
	纯POE or PAG 油 POE or PAG, Pure	Yes	Yes
	含添加剂的POE or PAG 油 POE or PAG, with additives	No	Yes
