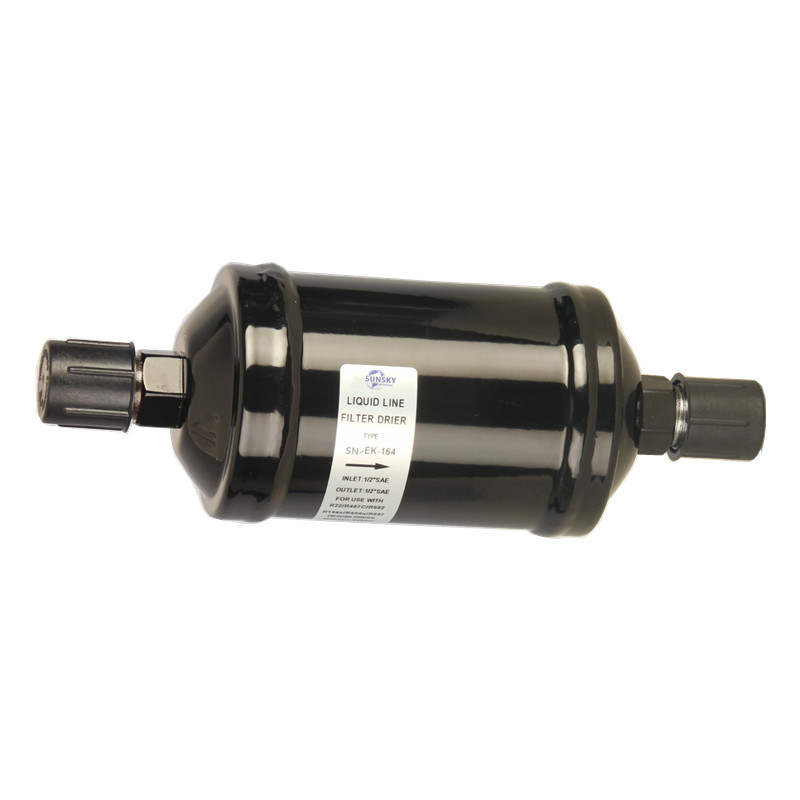

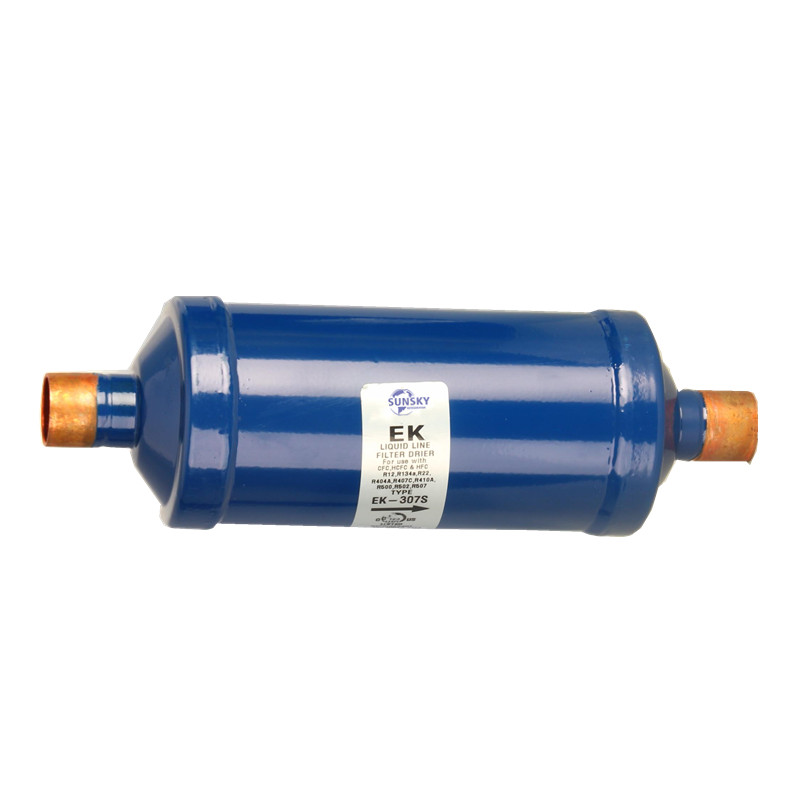

SN/EK Extra-Klean Liquid Line Filter-Drier

<
>

Description：


SN/EK Filter Drier is a premium compacted bead Filter Drier with a 20 micron outlet pad for maximum fi ltration.

SN/EK a premium universal replacement liquid line Filter Drier for CFC,HCFC and HFC refrigerants including R-12, R-134a, R-22, R-404A,


Features：

◆ Corrosion resistant epoxy powder paint finish,Salty test up to 400 hour

◆ Filtration fi rst for more effective use of surface area of desiccant

◆ Solid copper connections

◆ Shock resistant steel shell construction

◆ Desiccant blend-optimized for high water and acid capacity

◆ S.S. Filtration: 20 microns

◆ Maximum working pressure: 680 psig

◆ Suitable for R410A



Technical Data ：

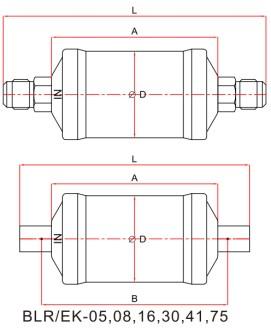

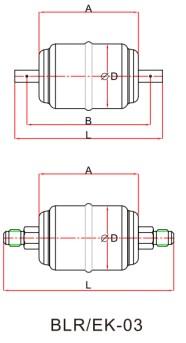

Drawings：

MODEL 型号Connection 接口FLOW CAPACITY 制冷量TONS @ 1 psi □P ①④DIMENSIONS ( mm) 尺寸WEIGHT 重量
英寸 (Inch) 毫米(mm)
R-134aR-22R-410AR-407CR-404A/507LBAD(Ibs)
SN/EK-032FM1/4Fem/Out SAE62.0 2.2 2.2 2.1 1.4 88 -66.00Φ430.50
SN/EK-032MF1/4Male/In SAE62.0 2.2 2.2 2.1 1.4 88 -
SN/EK-0321/4 SAE62.0 2.2 2.2 2.1 1.4 112 -
SN/EK-032S1/4 ODF62.7 2.9 2.9 2.9 2.0 103 83.00
SN/EK-032SV1/4 ODF62.7 2.9 2.9 2.9 2.0 --
SN/EK-0333/8 SAE103.0 3.3 3.3 3.2 2.2 120 -
SN/EK-033S3/8 ODF103.0 3.3 3.3 3.2 2.2 104 82.00
SN/EK-052FM1/4Fem/Out SAE62.1 2.3 2.3 2.2 1.5 --76.00Φ630.88
SN/EK-052MF1/4Male/In SAE62.1 2.3 2.3 2.2 1.5 114 -
SN/EK-0521/4 SAE62.1 2.3 2.3 2.2 1.5 122 -
SN/EK-052S1/4 ODF63.3 3.6 3.6 3.5 2.4 113 94.00
SN/EK-053MF3/8Male/In SAE103.5 3.8 3.8 3.7 2.5 --
SN/EK-0533/8 SAE103.5 3.8 3.8 3.7 2.5 130 -
SN/EK-053S3/8 ODF104.4 4.8 4.8 4.7 3.2 114 93.00
SN/EK-082FM1/4Fem/Out SAE62.3 2.5 2.5 2.4 1.7 --97.001.25
SN/EK-082MF1/4Male/In SAE62.3 2.5 2.5 2.4 1.7 --
SN/EK-0821/4 SAE62.3 2.5 2.5 2.4 1.7 143 -
SN/EK-082S1/4 ODF63.1 3.4 3.4 3.3 2.2 134 114.00
SN/EK-0825S5/16 ODF83.5 3.8 3.8 3.7 2.5 136 111.00
SN/EK-083MF3/8 Male/In SAE104.0 4.3 4.3 4.3 2.9 150 -
SN/EK-0833/8 SAE104.0 4.3 4.3 4.3 2.9 151 -
SN/EK-083S3/8 ODF104.5 4.9 4.9 4.8 3.3 135 113.00
SN/EK-0841/2 SAE126.7 7.3 7.3 7.1 4.9 156 -
SN/EK-084S1/2 ODF127.1 7.7 7.7 7.5 5.1 136 111.00
SN/EK-162MF1/4Male/In SAE62.3 2.5 2.5 2.4 1.7 --120.001.25
SN/EK-1621/4 SAE62.3 2.5 2.5 2.4 1.7 167 -
SN/EK-162S1/4 ODF63.1 3.4 3.4 3.3 2.2 157 138.00
SN/EK-1625S5/16 ODF83.1 3.4 3.4 3.3 2.2 150 134.00
SN/EK-1633/8 SAE103.9 4.2 4.2 4.1 2.8 175 -
SN/EK-163S3/8 ODF104.4 4.8 4.8 4.7 3.2 157 138.00
SN/EK-1641/2 SAE127.2 7.8 7.8 7.7 5.2 179 -
SN/EK-164S1/2 ODF128.5 9.2 9.2 9.0 6.2 160 135.00
SN/EK-1655/8 SAE169.7 10.5 10.5 10.3 7.0 190 -
SN/EK-165S5/8 ODF1610.1 10.9 10.9 10.7 7.3 167 135.00
SN/EK-167S7/8 ODF2215.5 16.8 16.8 16.5 11.2 190 152.00
SN/EK-3033/8 SAE104.3 4.7 4.7 4.6 3.1 245 -190.00Φ763.75
SN/EK-303S3/8 ODF106.3 6.8 6.8 6.7 4.6 230 208.00
SN/EK-3041/2 SAE128.1 8.8 8.8 8.6 5.9 250 -
SN/EK-304S1/2 ODF1210.0 10.8 10.8 10.6 7.2 232 206.00
SN/EK-3055/8 SAE1610.6 11.5 11.5 11.3 7.7 262 -
SN/EK-305S5/8 ODF1612.5 13.5 13.5 13.3 9.1 236 205.00
SN/EK-306S3/4 ODF1814.8 16.0 16.0 15.7 10.7 246 215.00
SN/EK-307S7/8 ODF2216.8 18.2 18.2 17.9 12.2 251 213.00
SN/EK-309S11/8 ODF2819.6 21.2 21.2 20.8 14.2 268 215.00
SN/EK-4133/8 SAE104.3 4.7 4.7 4.6 3.1 246 -192.00Φ894.75
SN/EK-4141/2 SAE1210.4 11.3 11.3 11.1 7.5 251 -
SN/EK-414S1/2 ODF1210.8 11.7 11.7 11.5 7.8 233 208.00
SN/EK-4155/8 SAE1612.0 13.0 13.0 12.8 8.7 261 -
SN/EK-415S5/8 ODF1617.0 18.4 18.4 18.1 12.3 238 208.00
SN/EK-417S7/8 ODF2220.3 22.0 22.0 21.6 14.7 252 215.00
SN/EK-419S1 1/8 ODF2827.7 30.0 30.0 29.4 20.1 276
SN/EK-757S7/8 ODF2222.2 24.1 24.1 23.6 16.1 394 365.00333.00Φ767.50
SN/EK-759S1 1/8 ODF2832.7 35.4 35.4 34.8 23.7 403 365.00
