General Description

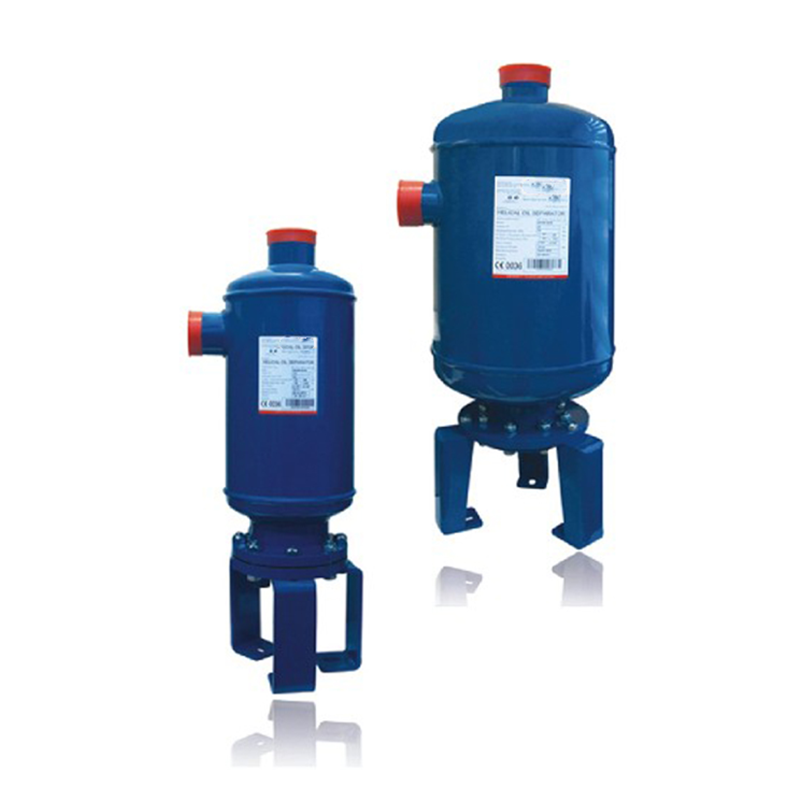

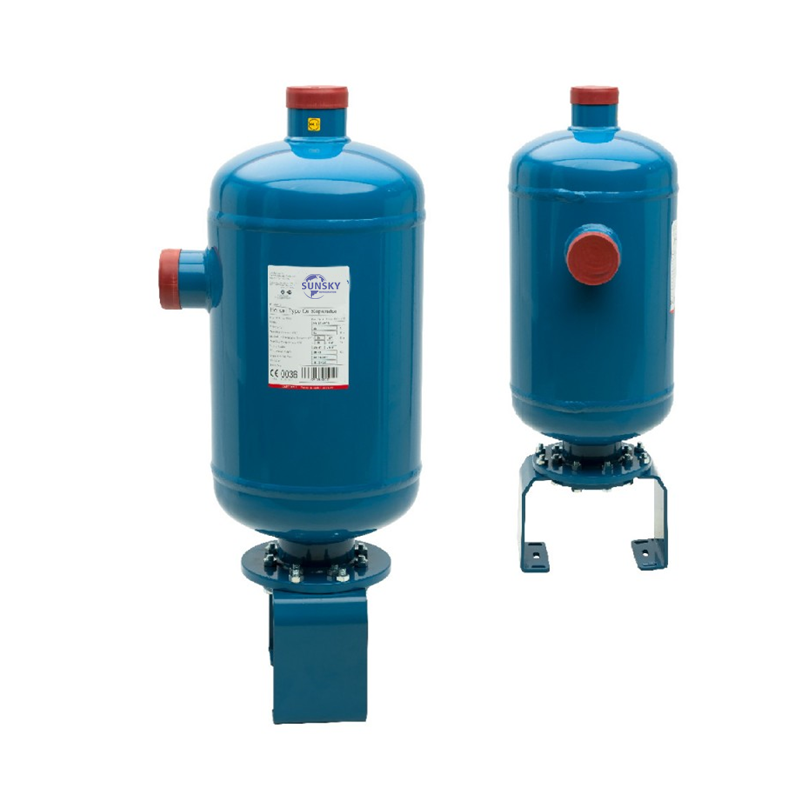

◆ Helical oil separators are designed for correct separation of oil in discharge gas and ensure recycling of oil into compressor in the most effective way. The purpose is to keep carter’s oil level, minimize possible excessive oil circulation, and increase the system’s output.

◆ Helical type oil separators have more effective oil separationm capacity compared to conventional oil separators.

◆Helical type oil separators can be used in various systems and multiple compressors.

◆These oil separators are designed for low-pressure systems, scroll and piston compressors.

◆They must not be used for screw and rotary compressors.

◆Helical oil separators are products with buoy systems, and they undergo very accurate production process.

◆All active parts working in buoy system are fully made of stainless material.

◆Buoy system is protected against pressure and circulation formed within the product.

◆Any contamination can be easily caught by magnet in buoy part at oil output point, and thus it is ensured that valve operates in cleaner media.

◆Buoy flange system may be easily dismantled and installed thanks to special foot connection.

◆Inner surface of oil separator is wound by stainless filter, and thus heavy oil particles collide with filters along spiral path, and separated from discharge gas.
