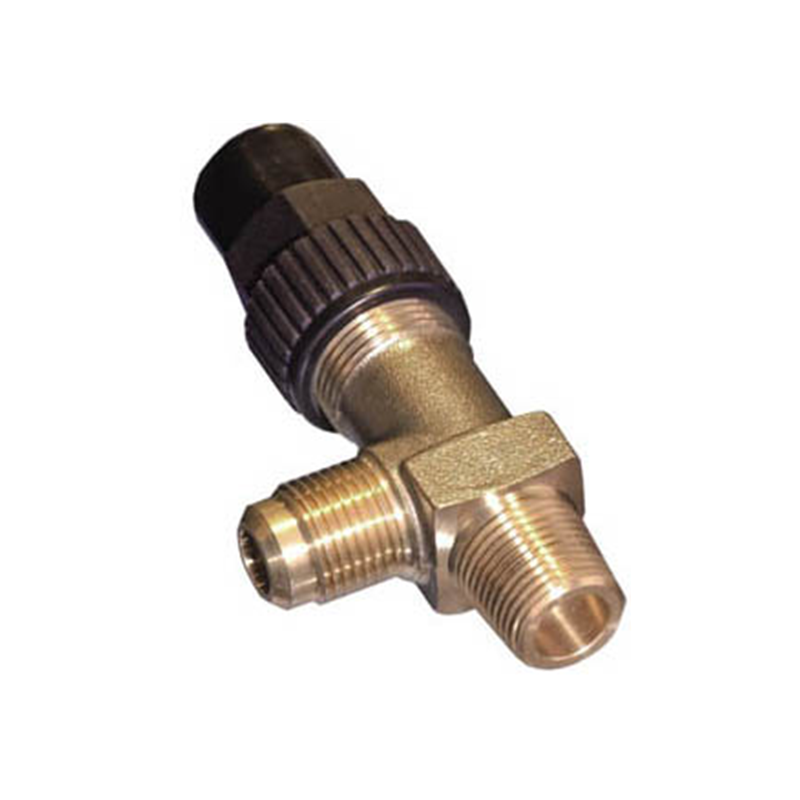

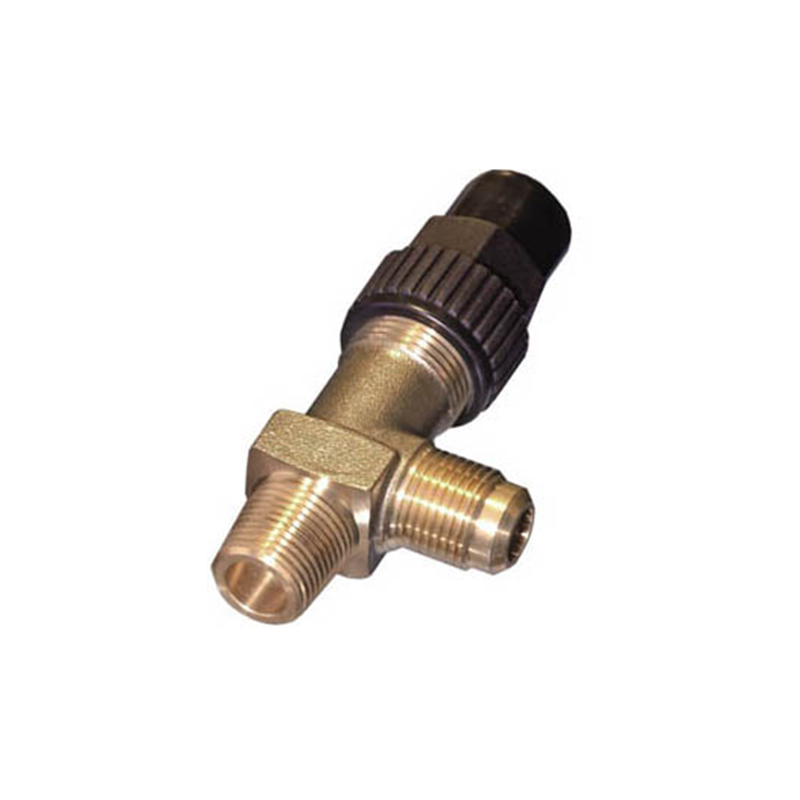

SN Receiver Valve are designed for installation on commercial refrigerating systems and on civil
and industrial conditioning plants.These valves are available with two ways,90°angle connections.
◆Forged brass body
◆Compatible with all CFC,HCFC and HFCrefrigerants and oils.
◆We can provide material with Iron
| Model | Connection | Dimensions(mm) | Weight(g) | Temperature Range(℃) | Max Working Pressure（Bar） | KV Factor （m3/h） | Figure No | |||
| SAE | NPT | L1 | L2 | L3 | ||||||
| SN-6110/22 | 1/4" | 1/4" | 72 | 48 | 27.5 | 110 | -60 to +130 | 35 | 0.44 | Figure 1 |
| SN-6110/23 | 1/4" | 3/8" | 77 | 50 | 29 | 135 | 0.45 | |||
| SN-6110/32 | 3/8" | 1/4" | 31 | 130 | 1.35 | |||||
| SN-6110/33 | 3/8" | 3/8" | 140 | |||||||
| SN-6110/43 | 1/2" | 3/8" | 88 | 55.5 | 34.5 | 220 | 2.4 | |||
| SN-6110/44 | 1/2" | 1/2" | 92 | 235 | 3.4 | |||||
| SN-6110/54 | 5/8" | 1/2" | 245 | |||||||
| SN-6110/66 | 3/4" | 3/4" | 128 | 88 | 42.5 | 675 | 6 | |||
| SN-6120/22 | 1/4" | 1/4" | 27.5 | - | 72 | 110 | 0.44 | Figure 2 | ||
| SN-6120/23 | 1/4" | 3/8" | 30 | 77 | 130 | 0.45 | ||||
| SN-6120/33 | 3/8" | 3/8" | 80 | 140 | 1.35 | |||||
| SN-6120/43 | 1/2" | 3/8" | 93 | 225 | 2.4 | |||||
| SN-6120/44 | 1/2" | 1/2" | 33 | 305 | 3.4 | |||||
| SN-6120/54 | 5/8" | 1/2" | 94 | 245 | ||||||
| SN-6120/66 | 3/4" | 3/4" | 40 | 130 | 670 | 6 | ||||
