Application

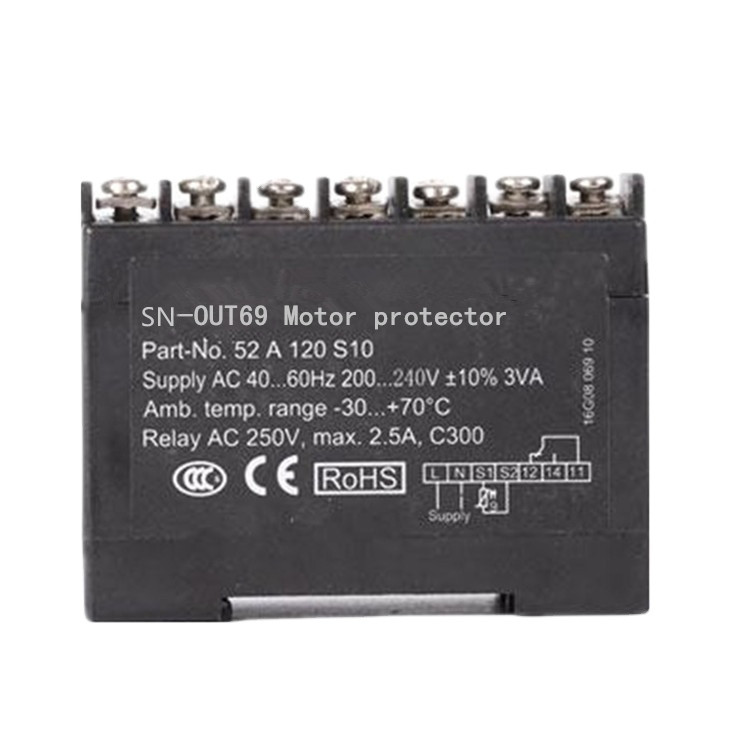

Due to the compact dimensions, RW-OUT69 is suitable for mounting into the terminal box of an electric motor. It is characterized by high reliability and availability.
It can be used forcompressors, such as FUSHENG ,COPELAND, and REFCOMP, etc.
Functional description
RW-OUT69 Motor protector matches with PTC sensor and is available for all kinds of motor which needs protection, preventing overheating of the electrical machines.
Up to 9 PTC-sensors according to DIN 44081/082 with different nominal response temperatures can be connected in series to the measuring circuit input of RW-OUT69. Hence it is possible to monitor several motor drive units (e.g. motor windings, gear drives, shaft bearings) for thermal overload with only one RW-OUT69 motor protector. If the temperature in one of the areas monitored exceeds the nominal response temperature of the respective PTC-sensor, the sensor resistance increases and the RW-OUT69 motor protector switches the motor contactor off. After cooling down below the reset threshold, the module automatically starts to monitor again. The relay switch output is designed as a potential free change-over contact.
Functional description
RW-OUT69 Motor protector matches with PTC sensor and is available for all kinds of motor which needs protection, preventing overheating of the electrical machines.
Up to 9 PTC-sensors according to DIN 44081/082 with different nominal response temperatures can be connected in series to the measuring circuit input of RW-OUT69. Hence it is possible to monitor several motor drive units (e.g. motor windings, gear drives, shaft bearings) for thermal overload with only one RW-OUT69 motor protector. If the temperature in one of the areas monitored exceeds the nominal response temperature of the respective PTC-sensor, the sensor resistance increases and the RW-OUT69 motor protector switches the motor contactor off. After cooling down below the reset threshold, the module automatically starts to monitor again. The relay switch output is designed as a potential free change-over contact.
| Supply voltage | Output relay |
| AC50/60Hz 200...240 ±10% 3VA | AgNi 90/10 |
| Permitted ambient temperature | Max AC 240V 2.5A C300 |
| -30...70℃ | Min. AC/DC>24V, >20mA |
| Temperature measuring circuits | Mechanical service life |
| -Type | Approx. 1 million switching cycles |
| Protection class acc. to En 60529 | |
| PTC, acc.to DIN44081/082 | IP00 |
| -Number of sensors | Connection type |
| 1...9 serial | Screw type terminal |
| -R25,total | Housing material |
| <1.8KΩ | PA66,glass-fibre-reinforced |
| -Rtrip | Mounting |
| 4.5 KΩ±20% | To snap open to 35mm standard rail as under EN 60715 or screw mounting |
| -Rreset | Dimensions in mm |
| 2.75 KΩ±20% | 53x33x68(LxWxH) |
| -Roff | Weight |
| <20Ω | approx.160g |
| -Measurement voltage | Order No. |
| ≤2.5V(acc.to IEC 60034-1) | 16G08 069 10 |
