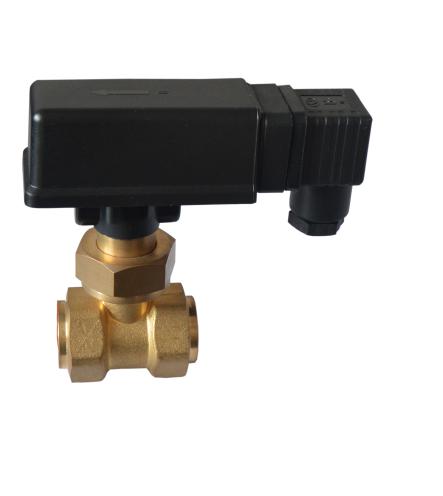

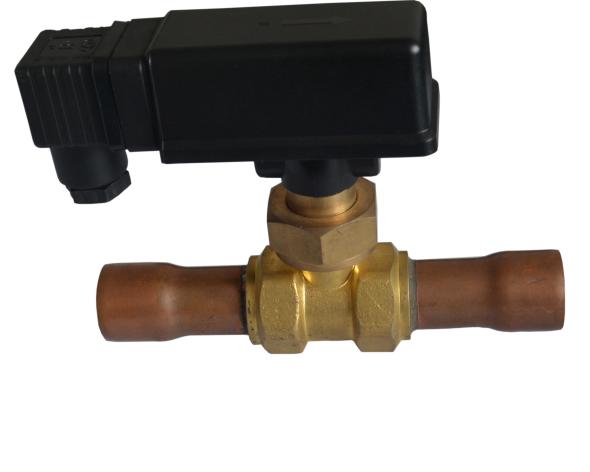

SN/OFS Oil Flow Switch for refrigeration system

Description：

SN/OFS series oil flow switches are mainly used to monitor and control the flow of the medium in pipes.

SN/OFS series oil flow switches are control switches that directly get signals from the flow of medium have lots of advantage, such as simple usage, small bulk, light weight, sensitive and reliable action, and etc.

SN/OFS can be widely used in foodstuff industry, water-c ooling air-condition, petroleum and petrifaction, etc. Available medium: R134a, R22, R407C, R404A/R507, oil and mixture of oil.

Features：

Max. ambient temperature: 80°C

Max. fluid temperature: 110 °C

Max. fluid pressure: 2.5 MPa

Max. working voltage: AC 220V

Max. working current: 1A

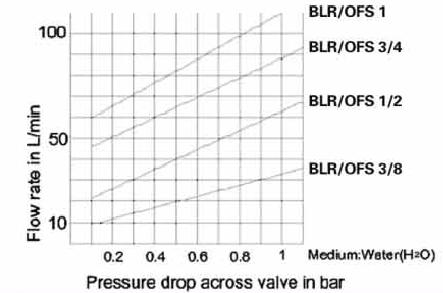

Technical Data ：

Model	Connection (inch)	Flow rate range (L/min)		Dimension (mm)		Medium	Body
		Flow rate range (L/min)		Dimension (mm)			Material
		Increasing flow	Decreasing flow	Length (L)	Height (H)
SN/OFS 038G	G3/8	2.6 -2.9	2.2 -2.9	50	112	R134a,R2 2,R407C, R404A/R5 07,water and oil	Brass
SN/OFS 038S	3/8"ODF			113
SN/OFS012G	G1/2	3.3 -4.0	2.9 -3.7	50
SN/OFS 012S	1/2"ODF			113
SN/OFS 014G	G3/4	6.6 -8.8	6.2 -7.7	50
SN/OFS 034S	3/4"ODF			148
SN/QFS001S	1"ODF	13.0 -16.1	11.4 -14.7	194

Drawings：
