OIL TRANSFER PUMP Yellow Jacket: 77940 MAX-FLOW COMBINATION OIL PUMP

Description：

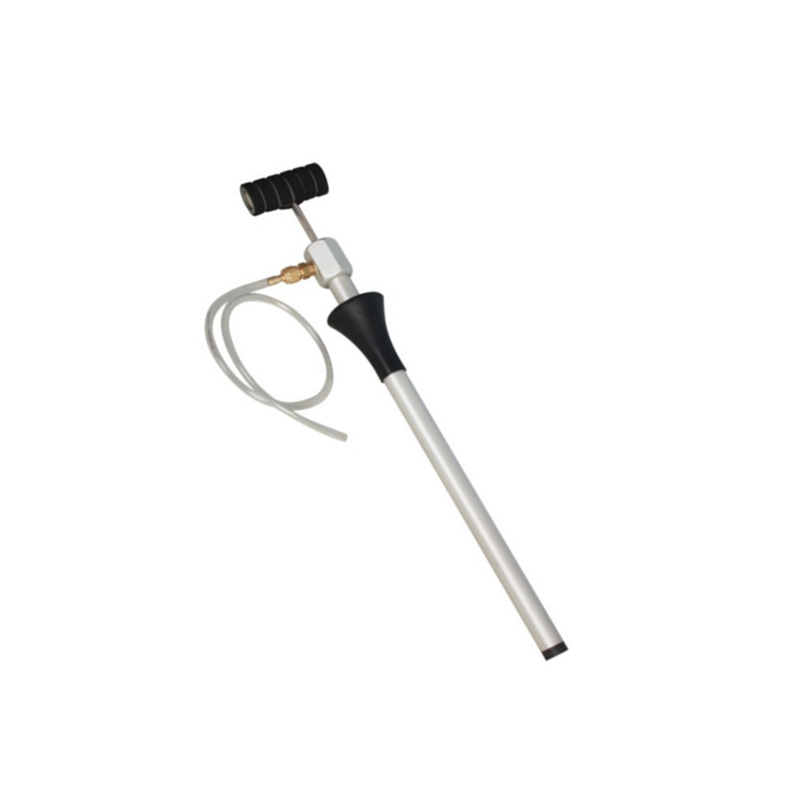

Model SN-OTP065 Improved Max-Transfer oil transfer pump with tube

Correspondent to Yellow Jacket: 77940 MAX-FLOW COMBINATION OIL PUMP

General Description：

With Mini Maxi-Transfer oil transfer pump you can smoothly and easily transfer oil into the compressor on the down stroke while the comperssor is under pressure. This make the oil transfer easier with a positive stroke.

Features：

Fuction:

Remove oil for recovery and conversion Add oil to esisting system

Charasteristics:

Pumps against 190 psi pressure

Comfort&Easy Grip rubber handle (optional)

Universal stopper automatically adjusts to all standard opening in 1",2-1/2" and 5 gallon

Suction transfer hose and fittings included connects to bottom of unit to pump oil from equipment quickly and efficiently.

Suitable for alkyl-benzene, ester-based, polyol ester, mineral and synthetic oils

Technical Data ：

Model	SN-OTP065	SN-OTP110
Max.pump against pressure	200psi	250psi
Max.pump rate per stroke	50ml	75ml
Fits size of the refrigeration oil containers	All size	All size
Hose connect	1/4" SAE	1/4” &3/8” SAE

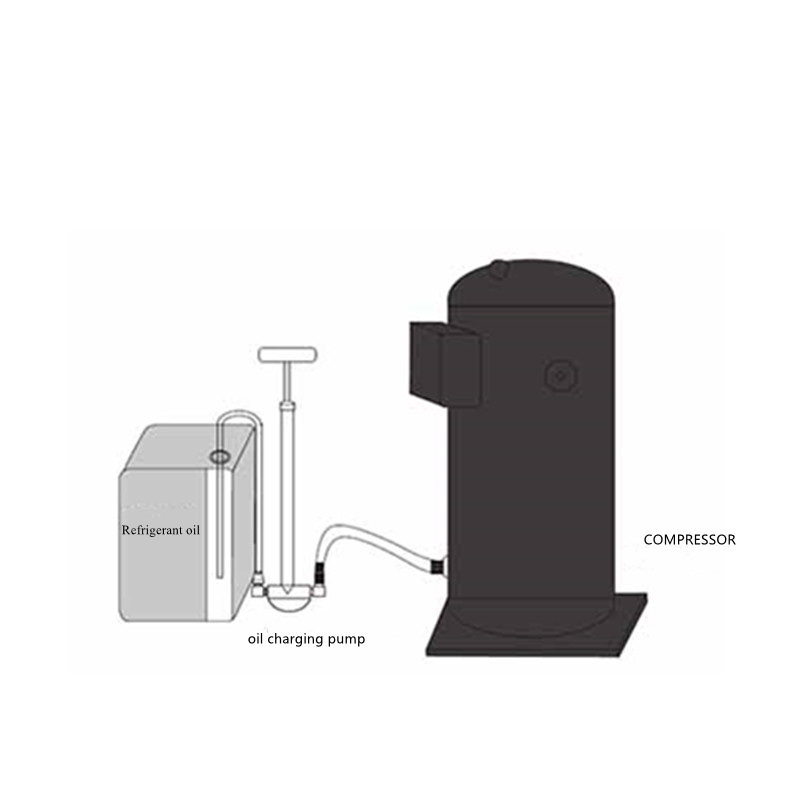

Drawings：
