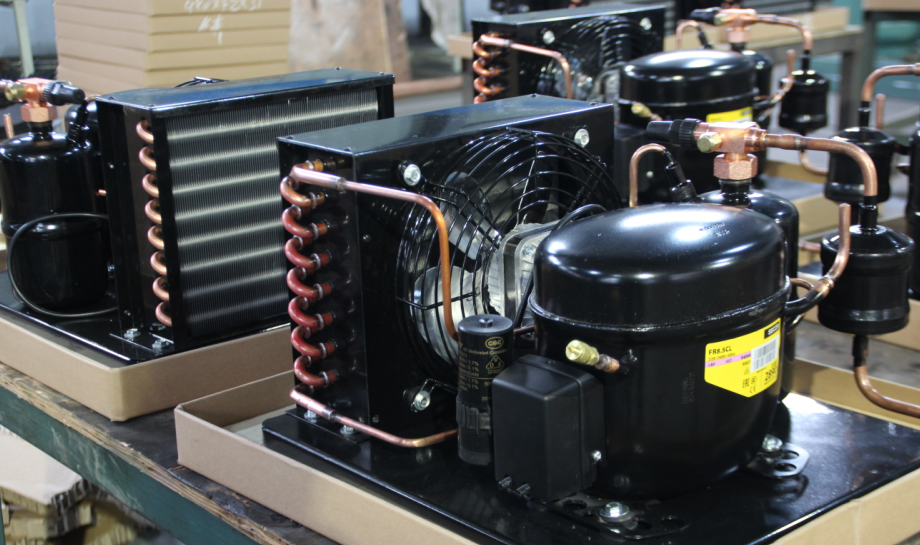

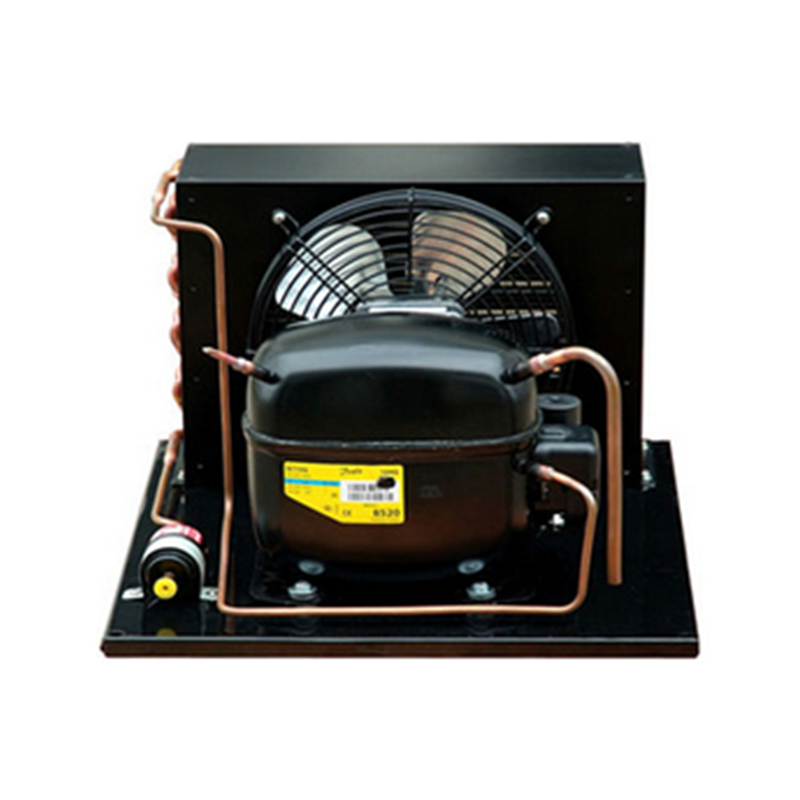

Small-sized commercial air cooling condensing units use Danfoss compressor, and then match with efficient condenser, premium brands fan, liquid receiver. With these excellent configuration,this machine perform efficient on energy with nice-looking appearance. This series units are widely used in small-sized commercial refrigerator, kitchen refrigerator, ice machine, showcase , experimental apparatus and small chillers, etc.
1.Application range: Evaporating temperture: -25~I0℃, Inlet air temperatre<43℃
Note:1.Normal conditions：Units evaporation temperture:7.2℃,Inlet air temperature:32℃. Compressor suction temperature:18℃;
2.Condensing with internal screw pipe, Hydrophilic aluminum fin
| Model | SNLUS-RF7.5G | SNLUS-SC10G | SNLUS-SC12G | SNLUS-SC15G | SNLUS-SC18G | SNLUS-SC21G |
| Compressor Model | RF7.5G | SC10G | SC12G | SC15G | SC18G | SC21G |
| Nominal capacity (W) | 600 | 900 | 1160 | 1402 | 1550 | 1920 |
| Input power (W) | 290 | 400 | 552 | 605 | 741 | 856 |
| Power supply | 1Ph-220V-50Hz | |||||
| Refrigerant | R134a | |||||
| Air volume m3/h | 340 | 410 | 550 | 520 | 520 | 1050 |
| Heat exchanger area m2 | 2.5 | 3.7 | 4 | 5.8 | 62 | 6.5 |
| Fan diameter*angle (mm) | 200*34° | 230*28° | 254*28° | 254*28° | 254*28° | 300*34° |
| Motor power (W) | 7 | 10 | 18 | 18 | 18 | 34 |
| Tube coupling (mm) | 6.35 | 6.35 | 6.35 | 6.35 | 6.35 | 6.35 |
| Suction coupling (mm) | 7.9 | 9.52 | 9.52 | 9.52 | 9.52 | 9.52 |
| Dimensions L*B*H (mm) | 380*320*265 | 380*320*265 | 480*350*290 | 480*350*290 | 480*350*290 | 480*410*350 |
