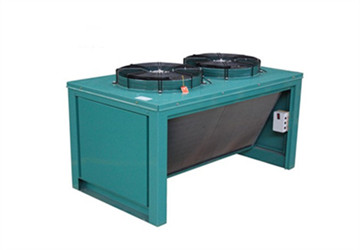

●Absorb advanced technology of famous European and American brands,spesialized design for commercial freezers and air conditioning equipment；
●Highly efficient heat-exchanging coiled pipes；
●FZL series axial flow fan with large air volume, low noise and less power consumption；
●Plastic-sprayed treatment, the shell is anti-xorrosive and endurable；
●For special-purpose products, please kindly contact us.
four-pole external rotor fans shall be used for the heat-exchange area less than 210㎡. And six-pole axial flow fans shall be used for the heat-exchange area more than 240㎡
| Technical parameters of industrial condensers | ||||||||||||||
| Model | Heat-exchange △t=15kw | Heat-exchange area | Fan | Diameter of inlet tube | Diameter of outlet tube | Dimensions (mm) | Mounting dimensions (mm) | |||||||
| Qty | Diameter of fan | Air volume | Power | Voltage | ||||||||||

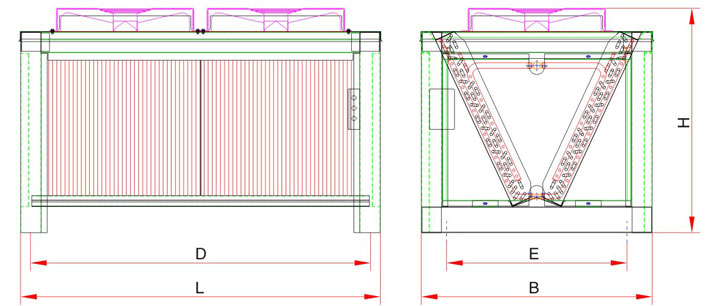

| W | m2 | N | φmm | m3/h | W | V | φmm | φmm | L | B | H | D | E | |
| LCV－25/72 | 24840 | 72 | 1 | 4D550 | 8720 | 600 | 380 | 22 | 16 | 950 | 900 | 880 | 870 | 650 |
| LCV－30/87 | 30102 | 87 | 1 | 4D600 | 10820 | 780 | 380 | 25 | 16 | 1100 | 1000 | 860 | 1020 | 750 |
| LCV－39/110 | 39050 | 110 | 2 | 4D500 | 2×6570 | 2×450 | 380 | 25 | 16 | 1400 | 900 | 880 | 1320 | 650 |
| LCV－45/130 | 44850 | 130 | 2 | 4D550 | 2×8720 | 2×600 | 380 | 28 | 19 | 1550 | 900 | 880 | 1470 | 650 |
| LCV－55/155 | 55025 | 155 | 2 | 4D550 | 2×8720 | 2×600 | 380 | 28 | 19 | 1600 | 1000 | 980 | 1520 | 750 |
| LCV－64/185 | 63825 | 185 | 2 | 4D600 | 2×10820 | 2×780 | 380 | 28 | 22 | 1700 | 1000 | 1080 | 1620 | 750 |
| LCV－73/210 | 72660 | 210 | 2 | 4D630 | 2×12200 | 2×800 | 380 | 32 | 22 | 1750 | 1000 | 1180 | 1670 | 750 |
| LCV－83/240 | 82800 | 240 | 2 | φ700 | 2×15000 | 2×750 | 380 | 32 | 22 | 1900 | 1175 | 1260 | 1820 | 925 |
| LCV－104/300 | 103800 | 300 | 2 | φ750 | 2×19000 | 2×1100 | 380 | 35 | 25 | 2250 | 1175 | 1260 | 2170 | 925 |
| LCV－111/320 | 111040 | 320 | 2 | φ750 | 2×19000 | 2×1100 | 380 | 38 | 25 | 2350 | 1175 | 1260 | 2270 | 925 |
| LCV－125/360 | 124560 | 360 | 3 | φ650 | 3×13200 | 3×550 | 380 | 42 | 28 | 2650 | 1175 | 1260 | 2570 | 925 |
| LCV－138/400 | 138400 | 400 | 3 | φ700 | 3×15000 | 3×750 | 380 | 42 | 28 | 2950 | 1175 | 1260 | 2870 | 925 |
| LCV－166/480 | 165600 | 480 | 3 | φ750 | 3×19000 | 3×1100 | 380 | 54 | 28 | 3400 | 1175 | 1260 | 3320 | 925 |
