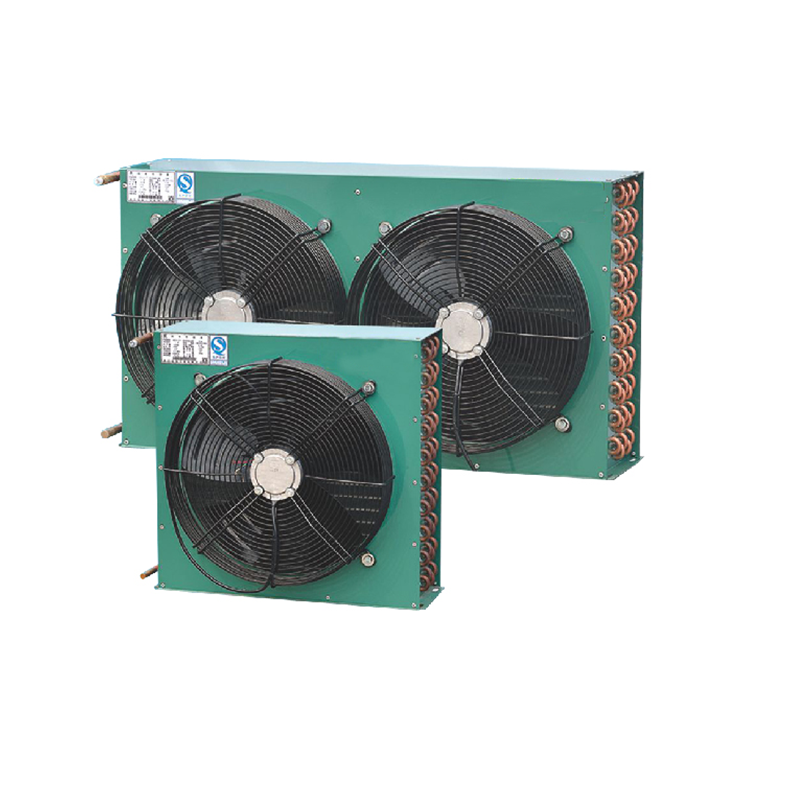

AIR COOLED CONDENSER

Description：

The shell is made of quality steel plate；sprayed plastic surface is anti-corrosive,and its appearance is handsome.

Coiled pipes are mechanical expanding tubes in staggered arrangement；therefore,copper tubes and fins are combined closely,and ensure good effect of heat exchange.

This product has passed 2.5mpa air-tightness test and treatment of system waste.

It is applicable to such coolants as R22,R134a,R404a,and R407c etc.

Features：

Air-cooled condenser is a radiator in freon fefrigerating equipment, which used in air cooling

All LCH type condensers use motors that boast large air volume and low rotating speed, therefore, the condensers have low noise and nice appearance,and can be widely used in those refrigerating equipment that have strict requirements of noise.

Technical Data ：

Technical parameters of LCH type condensers
Model	Main parameters		Parameter of fan motor					Caliber of connecting tube		Category
	Heat removal quantity △t=15k(kw)	Condensing area	Diameter of fan blade	Qty	Total air volume	Power	Voltage	Inlet	Outlet
	W	m2	φmm	N	m3/h	W	V	φmm	φmm
LCH-0.7/2	710	2	200	1	430	33	220	10	10	We can design and proudce special non-standard products for customers
LCH-1.2/3.4	1217	3.4	200	1	430	33	220	10	10
LCH-1.4/4.0	1440	4	200	1	430	33	220	10	10
LCH-1.6/4.4	1566	4.4	250	1	910	60	220	10	10
LCH-1.9/5.2	1856	5.2	300	1	1530	75	220	10	10
LCH-2.9/8	2864	8	300	1	1530	75	220	12	12
LCH-3.0/8.4	3007	8.4	300	1	1530	75	220	12	12
LCH-3.8/10.6	3816	10.6	300	1	1530	75	220	12	12
LCH-3.6/10	3550	10	350	1	1800	90	380	16	12
LCH-4.3/12	4296	12	350	1	1800	120	380	16	12
LCH-5.4/15	5355	15	350	1	1800	120	380	16	12
LCH-6.4/18	6408	18	400	1	3000	120	380	16	12
LCH-7.9/22A	7876	22	400	1	3000	120	380	16	12
LCH-10/27	9610	27	400	1	3000	120	380	19	16
LCH-7.9/22B	7876	22	350	2	3600	2×120	380	16	12
LCH-10/28	9968	28	350	2	3600	2×120	380	19	14
LCH-12/33	11880	33	400	2	6000	2×120	380	19	14
LCH-15/42	15036	42	400	2	6000	2×120	380	19	16
LCH-19/52	18668	52	400	2	6000	2×120	380	19	16
LCH-21/60	21360	60	450	2	9000	2×180	380	22	19
LCH-25/70	24640	70	450	2	9000	2×180	380	25	19
LCH-28/80	28240	80	450	2	9000	2×180	380	25	19
LCH-35/100	35400	100	500	2	13140	2×450	380	25	19
LCH-39/110	39050	110	500	2	13140	2×450	380	32	19
LCH-42/120	42240	120	550	2	17440	2×600	380	32	19
LCH-48/135	47799	135	550	2	17440	2×600	380	32	19
LCH-55/155	55025	155	600	2	21640	2×780	380	32	22
LCH-60/170	59500	170	600	2	21640	2×780	380	32	22

LCH-type condenser size parameters
Model	Copper tubes	Dimensions			Mounting dimensions			Coupling dimensions		Dimensions of fan arrangement
	Row number × Number of rings	L	B	H	D	E	C	A	K	G	P	M
	N×W	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
LCH-0.7/2	2×4	250	120	240	275	70	9	200	24	115	125
LCH-1.2/3.4	3×4	250	120	240	275	70	9	200	24	115	125
LCH-1.4/4.0	3×4.5	300	120	255	290	90	7	225	24	128	150
LCH-1.6/4.4	3×5	325	120	280	350	70	7	250	24	140	162
LCH-1.9/5.2	3×6	370	130	340	370	100	7	290	25	170	185
LCH-2.9/8	4×6	370	150	340	370	120	9	290	25	170	185
LCH-3.0/8.4	3×6	450	170	350	475	120	9	275	44	175	225
LCH-3.8/10.6	4×6	450	170	350	475	120	9	275	44	175	225
LCH-3.6/10	3×8	450	170	420	475	120	9	375	30	210	225
LCH-4.3/12	4×8	440	180	420	430	130	9	320	50	210	220
LCH-5.4/15	4×9	490	180	470	480	130	9	370	50	235	245
LCH-6.4/18	4×10	530	180	520	520	130	11	420	50	260	265
LCH-7.9/22A	5×10	530	200	520	520	150	11	420	50	260	265
LCH-10/27	6×9	590	240	470	580	190	11	425	35	340	295
LCH-7.9/22B	4×8	810	180	420	800	130	11	320	50	210	210	390
LCH-10/28	4×9	890	180	470	880	130	11	420	50	260	230	430
LCH-12/33	4×10	940	180	520	930	130	11	420	50	260	245	450
LCH-15/42	5×10	940	200	520	930	150	11	420	50	260	245	450
LCH-19/52	5×12	940	200	620	930	150	11	500	50	310	245	450
LCH-21/60	5×12	1160	240	620	1150	170	11	500	50	310	300	560
LCH-25/70	4×14	1160	240	720	1150	190	11	500	50	360	300	560
LCH-28/80	4×16	1160	240	820	1150	190	11	500	50	410	300	560
LCH-35/100	4×17	1350	260	870	1340	210	11	500	50	435	345	660
LCH-39/110	4×18	1350	260	920	1340	210	11	500	50	460	345	660
LCH-42/120	4×20	1350	260	1020	1340	210	11	500	50	510	345	660
LCH-48/135	5×18	1350	260	920	1340	210	11	500	50	460	345	660
LCH-55/155	5×20	1400	300	1020	1390	250	11	500	50	510	360	680
LCH-60/170	5×22	1400	300	1120	1390	250	11	500	50	560	360	680

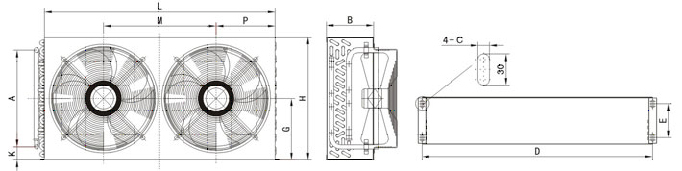

Drawings：

AIR COOLED CONDENSER.jpg
