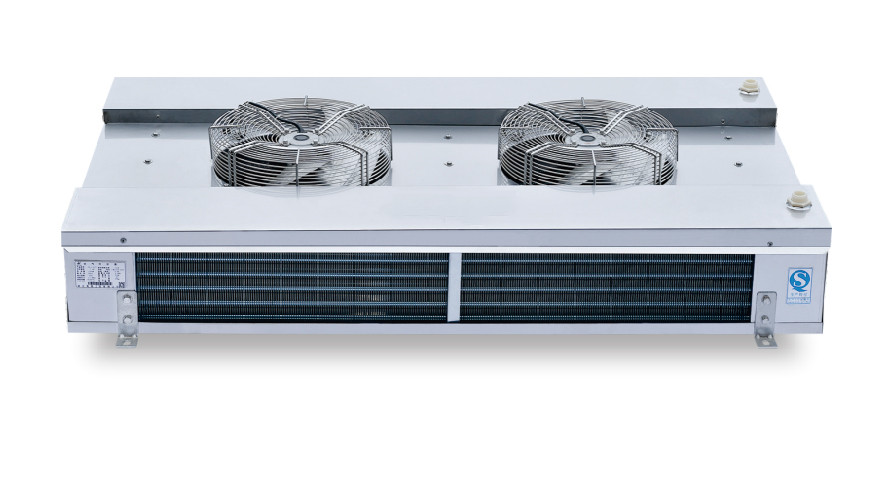

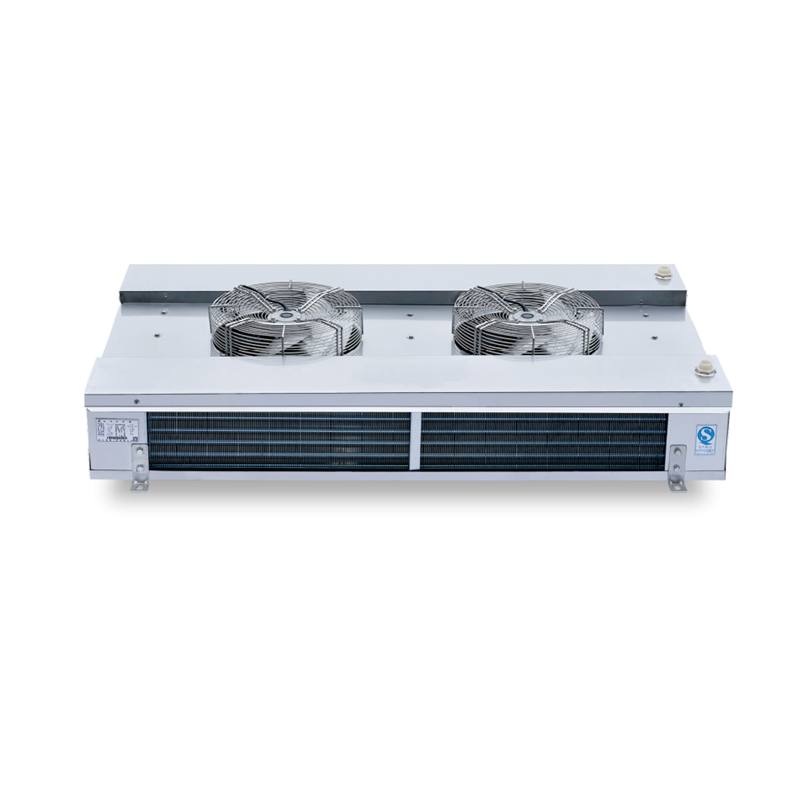

LES DUAL DISCHARGE AIR COOLER

Description：

Long air throw adapters are available to increase air throw to 300 ft. Fans can be specified for demanding applications with tightly packed product such as blast freezing or pressure cooling. Fan arrangement options include 45° down discharge, horizontal discharge, blow through, and draw through.

Features：

1) Axial propeller, tube axial, centrifugal, or plug fans.
2) Stainless steel, hot dip galvanized steel, aluminum, copper, or copper-nickel tubes and/or fins.
3) Stainless steel, galvanized steel, or aluminum cabinets.
4) DX, pump recirculated (liquid overfeed), gravity flooded, or glycol/brine operation.
5) UL, CSA, or CE electrical safety listings.
6) ASME or PED pressure equipment listings.
7) Hot gas, water, electric, interlaced glycol, or air defrost.
8) Variable fin spacing.

Technical Data ：

Model Specifications	Heat exchange Area At=8K	Refrigerating capacity Temperature of storage OC	Air volume	Noise	Range	Rated parameters of motor (Ouadmpote)		Dimensions		Coupling		Weight	Tube Vvolume	Quantity of Fans
	Heat exchange Area At=8K	Refrigerating capacity Temperature of storage OC	Air volume	Noise	Range	Rated parameters of motor (Ouadmpote)		L	E	Inlet	outlet	Weight	Tube Vvolume
	m2	KW	m7h	db(A)	m		A	mm	mm	mm	mm	Kg	L
LES- 035A/144	13.5	2.86	2290	64	2x6	140	0.38/380V	905	660	12	19	31	2.3	1
LES- 035B/144	20.2	3.76	2290	64	2x5	140	0.38/380V	905	660	16	19	35	3.4	1
LES- 035A/244	26.3	5.74	4580	67	2x6	140	0.38/380V	1505	1260	16	28	56	4.3	2
LES- 035B/244	39.5	7.58	4580	67	2x5	140	0.38/380V	1505	1260	16	28	67	6.4	2
LES- 035A/344	39.2	8.64	6870	69	2x6	140	0.38/380V	2105	1860	16	28	81	6.2	3
LES- 035B/344	58.7	11.40	6870	69	2x5	140	0.38/380V	2105	1860	16	28	91	9.3	3
LES- 035A/444	52.0	11.49	9160	70	2x6	140	0.38/380V	2705	2460	16	28	106	8.2	4
LES- 035B/444	78.0	15.32	9160	70	2x5	140	0.38/380V	2705	2460	16	28	130	12.3	4

Drawings：
