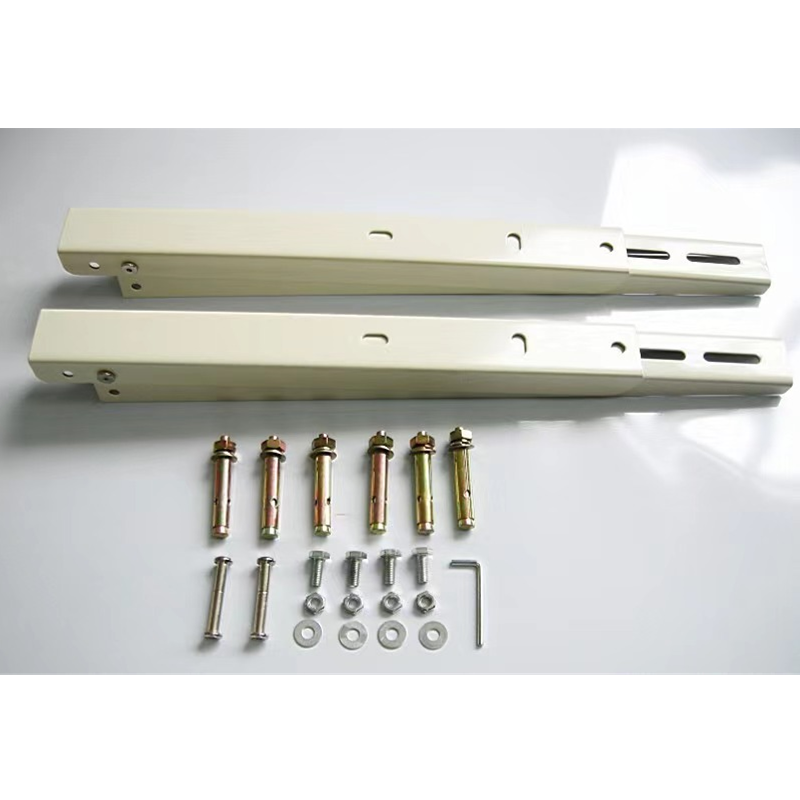

AC Bracket

Description：

Cold rolled plSNe is sprayed with plastic

Fast and easy to mount.

Comptetive price

Light to carry

Anti-VibbrSNion feet kit and strong screws are optional

Features：

AC Wall Bracket Air Conditioner Support Air Conditioner Bracket

Product Description:

high-grade powder is sprayed on the surface of the product to prevent rust and scratches, and the       service life is long.
it adopts thicker material,which can bear a large weight and is more safe and reliable.
standard hole spacing,easy for workers to install.
the hole distance,thickness and length can be customized,please contact us.

Technical Data ：

Model	Bottom Length (mm)	Vertical Length (mm)	Thickness (mm)	N.W. (kg)	G.W. (kg)	Loading (kg)	QTY/CTN	N.W.	G.W	Packing Dimension
SN/ACB-400	400	365	1.8	1.7	1.7	150	10	17	17.5	450x120x295
SN/ACB-450	450	400	1.8	1.9	2	150	10	20	20.5	500x140x330
SN/ACB-500	500	400	2	2.6	3.1	150	6	18.6	19.1	550x170x200
SN/ACB-550	550	400	2	3	3.5	150	6	21	20.5	600x170x200
SN/ACB-600	600	500	2	4	4.5	200	6	27	27.5	650x170x200

Drawings：
