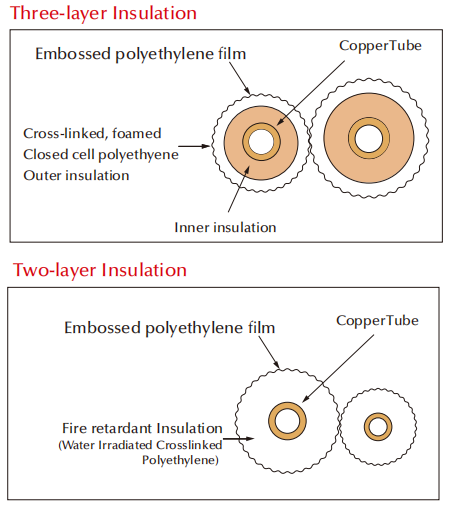

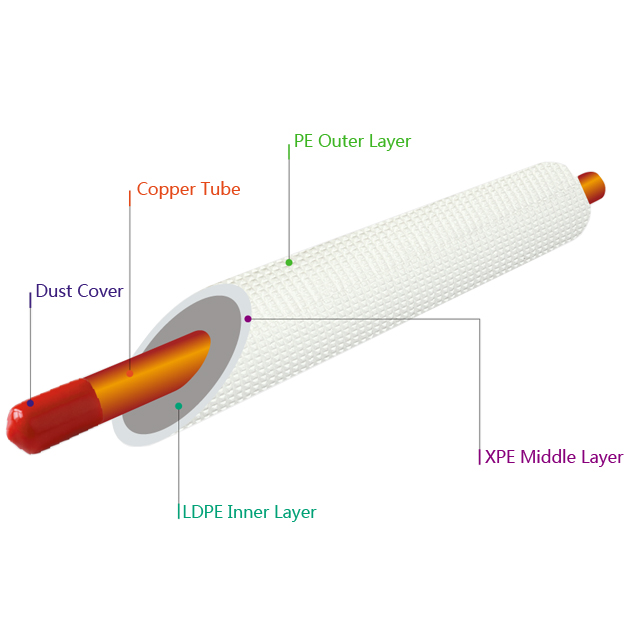

Insulation Properties:
7.RoHS Certificate approved
To be adjusted as per specific requirement
Length 3m,4m,5m,20m,30m is available
length、wall thichness can be adjusted as per specific requirement

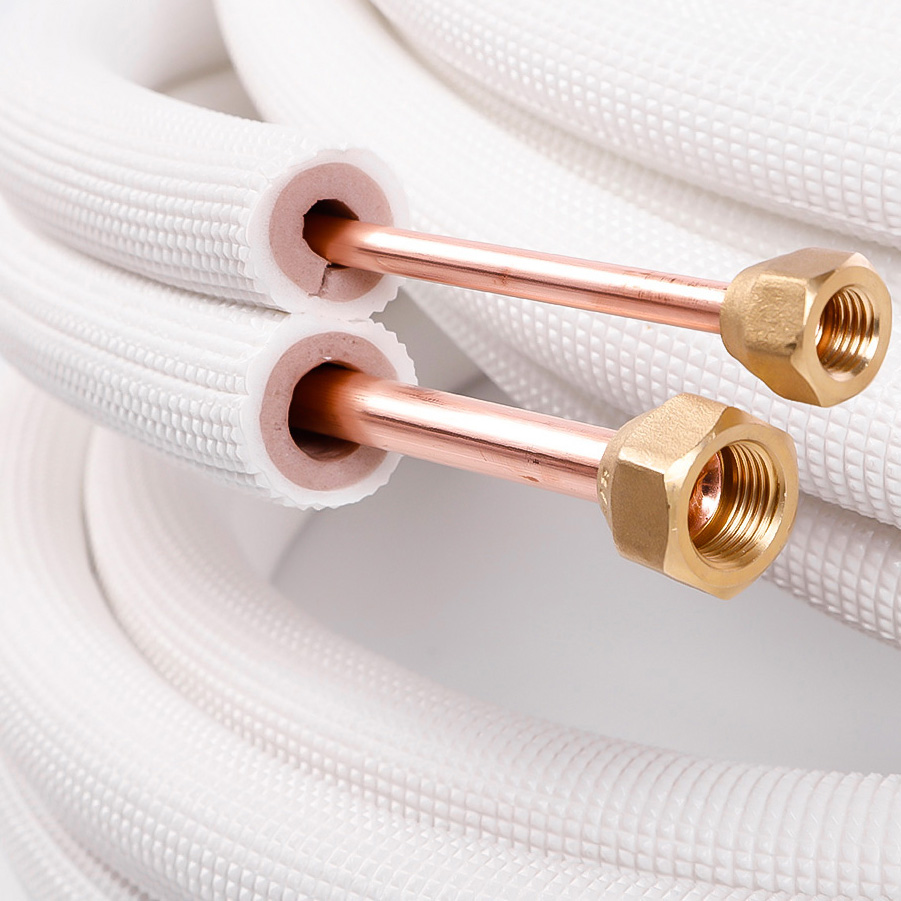

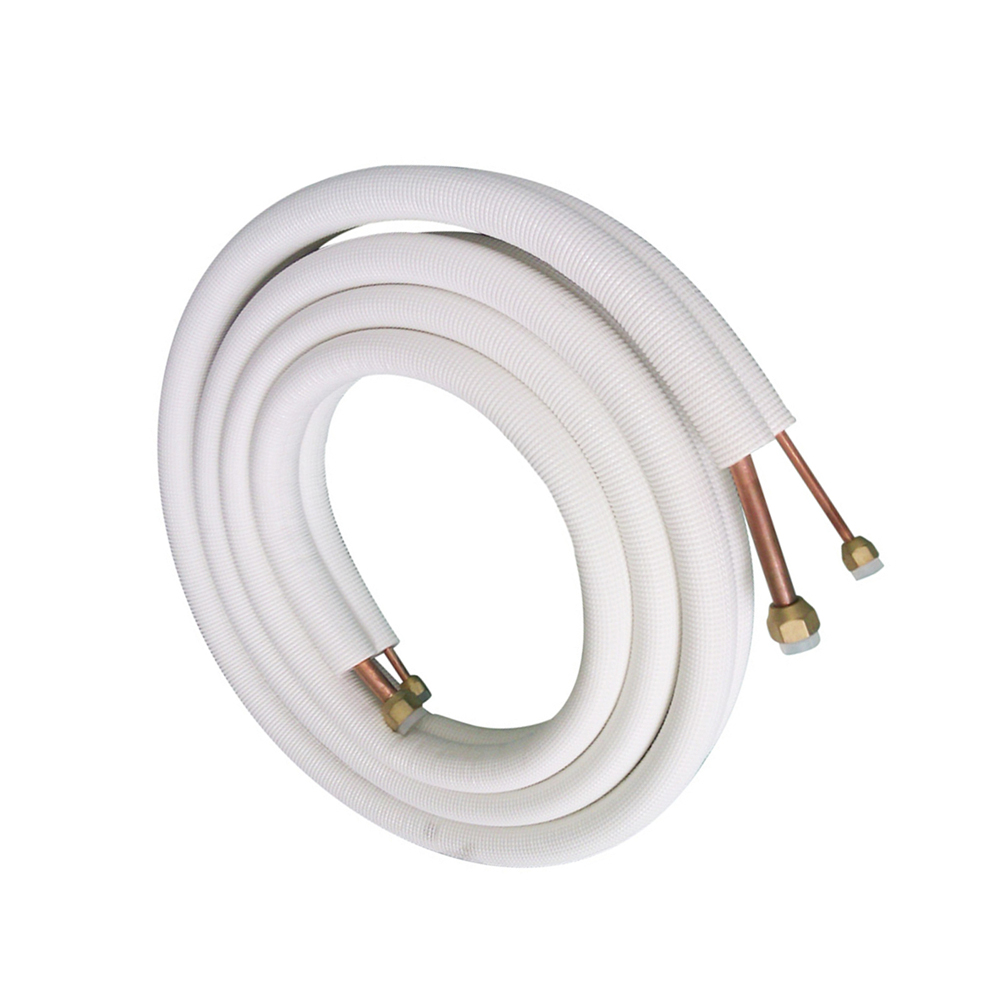

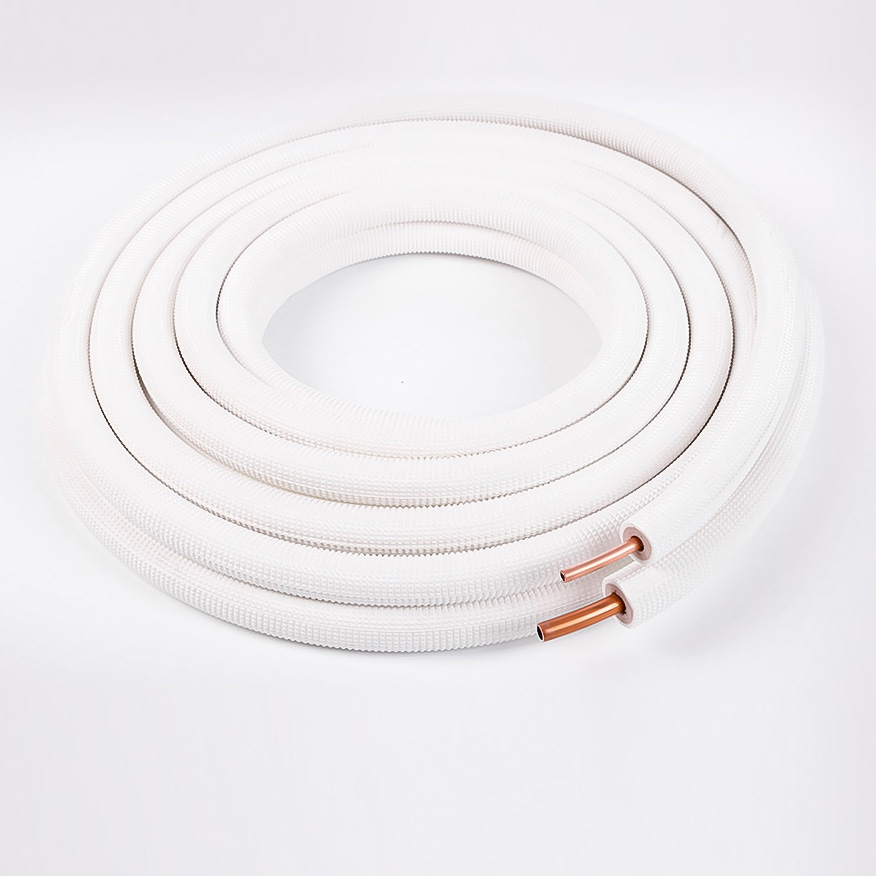

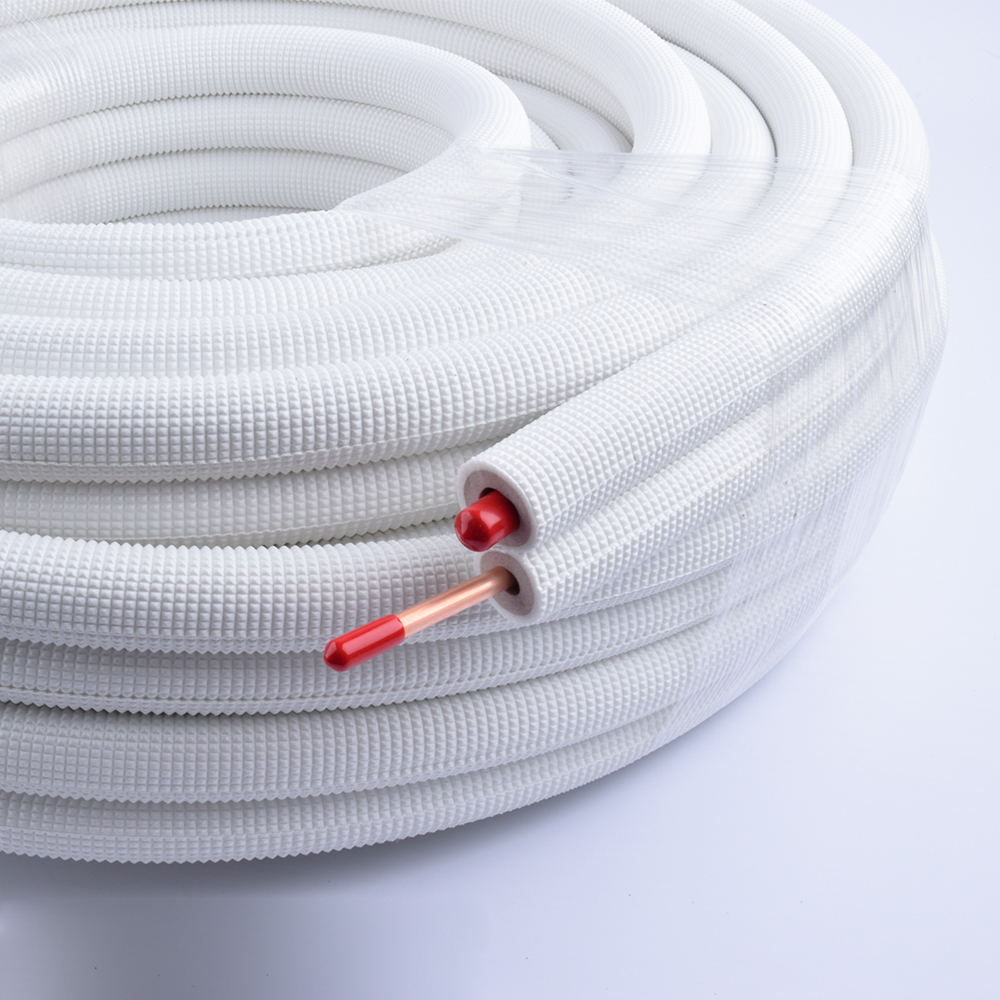

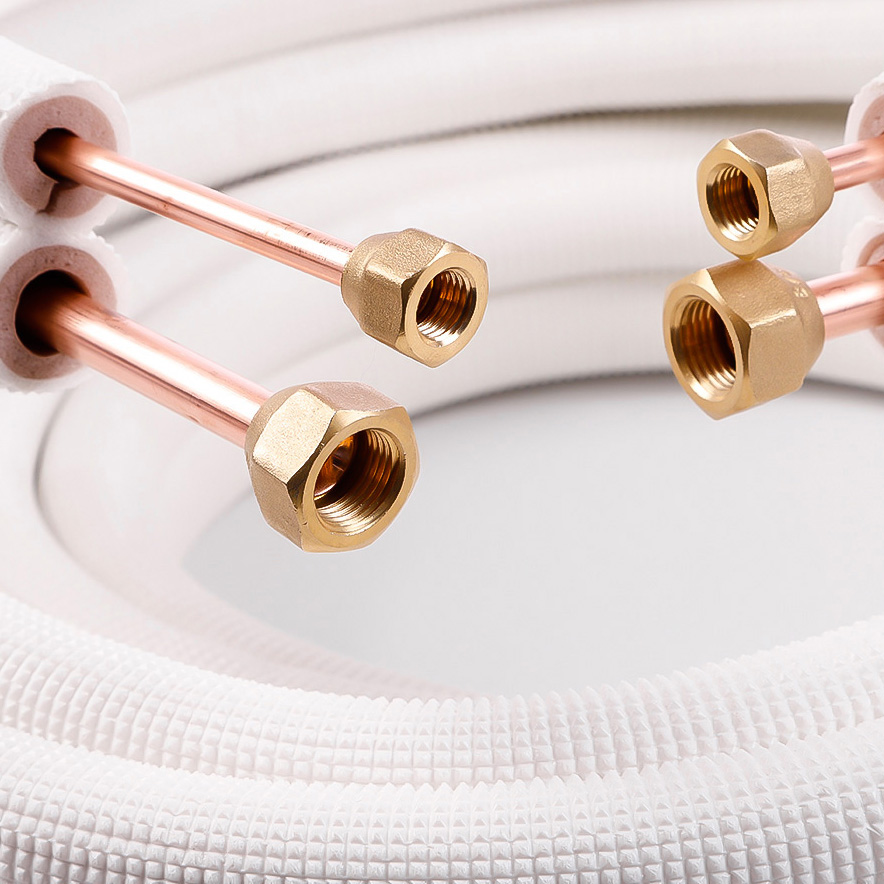

1. Inside cleaned copper tubes for refrigerant gas and closed at the extremities.
2. Phosphorus deoxidized soft temper copper pipe DHP99.9 (C12200)
3. Dimensions and features according to AS TM B280, EN 12735-1, AS1571, JIS 3300
| Model | O.D.(inch) | Wall thickness(mm) | Double coil length(m) | Packing |
| SN-1438 | 1/4" | 0.5 | 20 | 1 |
| 3/8" | 0.65 | |||
| SN-1412 | 1/4" | 0.5 | 20 | 1 |
| 1/2" | 0.75 | |||
| SN-1458 | 1/4" | 0.5 | 20 | 1 |
| 5/8" | 0.89 | |||
| SN-3858 | 3/8" | 0.65 | 20 | 1 |
| 5/8" | 0.89 | |||
| SN-3834 | 3/8" | 0.65 | 20 | 1 |
| 3/4" | 0.89 | |||
| SN-1234 | 1/2" | 0.75 | 20 | 1 |
| 3/4" | 0.89 |
