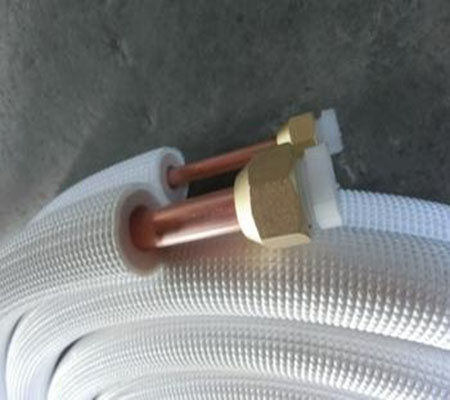

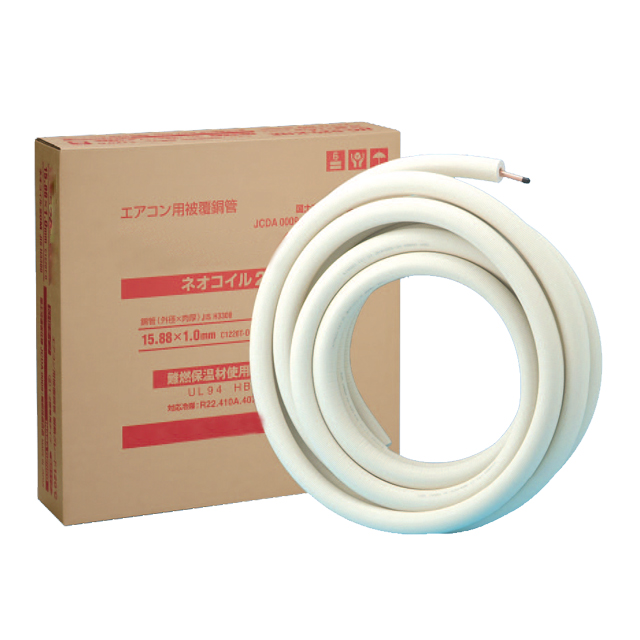

The length we can do customers required of air condition insulation connecting pipe.
Our coil is copper and copper-aluminum resistance welding pipe.
The brass nut we can install as customers’ required or not.
The length we have 3m,5m,6m,7n,9m,15m etc, and as customer required.
PE insulation is foamed by polyethylene water bridge,the middle layer is foamed by electronic bridge,
the other layer is made of polyethylene anti-aging and anti-untraviolet ray composite memberane,
which have high temperature resistant of 120℃.
Thermal insulated heat preservation tube material and characteristics JIS A9511:PE-C-P2 standard,use for:
1. Water,liquid,powder,granule transmission
2. Electrical wire protection tubing
3. Drain hose for construction,etc.
4. Especially for air conditioner drainage use(Heat preservation drain hose for air conditioners,
Drain hose for central air conditioning system).
5. Size range accept custom size
6. Materials: PVC TPU TPE optional
7. Spiral hose with unbreakable core inside
8. RoHs approval
| Model | O.D.(inch) | Wall thickness(mm) | Double coil length(m) | Packing |
| SN-1438 | 1/4" | 0.5 | 20 | 1 |
| 3/8" | 0.65 | |||
| SN-1412 | 1/4" | 0.5 | 20 | 1 |
| 1/2" | 0.75 | |||
| SN-1458 | 1/4" | 0.5 | 20 | 1 |
| 5/8" | 0.89 | |||
| SN-3858 | 3/8" | 0.65 | 20 | 1 |
| 5/8" | 0.89 | |||
| SN-3834 | 3/8" | 0.65 | 20 | 1 |
| 3/4" | 0.89 | |||
| SN-1234 | 1/2" | 0.75 | 20 | 1 |
| 3/4" | 0.89 |
