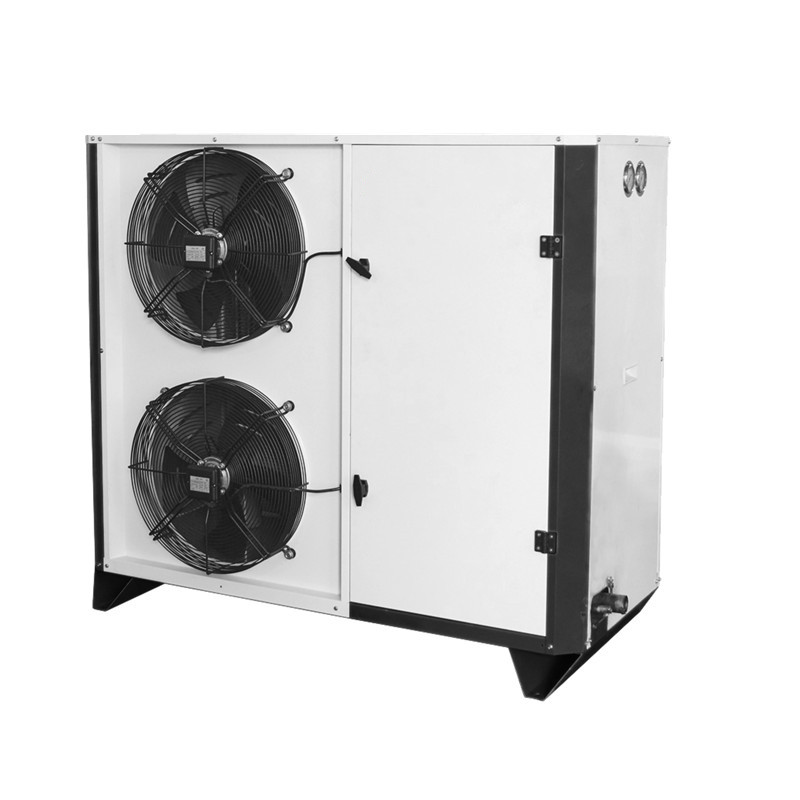

Reliability and compactness make the LUD condensing unit
a favourite cooling solution for cost-effective refrigeration.
High reliability for food and goods safety
Equipped with Danfoss components that are optimised to
work together: compressor, controls, heat exchanger.
It’s a smart way to obtain high performance and reliability
Compact and light for transport and handling
"The system is designed to perfectly
fit into a light, compact housing. "
Easy from day 1 - saves time and money:
Easy to handle and transport thanks to the compact design
Easy to install, with quick connections
Stock optimisation with multirefrigerant scroll compressors
The reliable Danfoss compressor reduce maintenance and improve uptime
Air Cooled Medium and Low Temp (R22) Danfoss MLM Compressor Series
| Model | SN-S03MA | SN-S04MA | SN-S05MA | SN-S06MA | SN-S08MA | SN-S10MA | ||
| Compressor model | MLM021 | MLM030 | MLM038 | MLM045 | MLM058 | MLM076 | ||
| Temperature(℃） | -20℃ - +5℃ | |||||||
| Refrigerant | R22 | |||||||
| Power supply | 380V/3PH/50Hz | |||||||
| Condenser | Fan Qty *Dia (mm) | 1*450 | 1*450 | 1*500 | 1*500 | 1*550 | 2*450 | |
| Air Flow(m3/h) | 4500 | 4500 | 6500 | 6500 | 7500 | 4500 | ||
| Fan voltage | 380V/3PH/50Hz | |||||||
| Compressor Capacity | Evaporating Tempe -5℃ | Cooling capacity(W) | 5800 | 8800 | 10400 | 12300 | 15900 | 21300 |
| Input(KW) | 1.9 | 2.7 | 3.2 | 3.8 | 4.8 | 6.3 | ||
| Evaporating Tempe -10℃ | Cooling capacity(W) | 4800 | 7200 | 8500 | 9900 | 13000 | 17400 | |
| Input(KW) | 1.8 | 2.7 | 3.1 | 3.8 | 4.8 | 6.3 | ||
| Evaporating Tempe -15℃ | Cooling capacity(W) | 4000 | 5800 | 6800 | 7900 | 10500 | 14100 | |
| Input(KW) | 1.8 | 2.6 | 3 | 3.7 | 4.8 | 6.4 | ||
| Pipe | Suction inlet(mm) | 19 | 19 | 19 | 19 | 28 | 28 | |
| Liquid Dia (mm) | 16 | 16 | 16 | 16 | 16 | 19 | ||
| Condenser capacity (KW) | 8.1 | 8.1 | 13 | 16.2 | 18.8 | 24.6 | ||
| Overall Dimension L*W*H (mm) | 1040*450*1000 | 1140*450*1100 | 1040*450*1300 | |||||
| Installation Dimension L*W (mm) | 580*400 | 680*400 | 580*400 | |||||
| Model | SN-T03MA | SN-T04MA | SN-T05MA | SN-T06MA | SN-T08MA | SN-T10MA | SN-T15MA | ||
| Compressor model | MLM021 | MLM030 | MLM038 | MLM045 | MLM058 | MLM076 | MLM116 | ||
| Temperature(℃） | -20℃ - +5℃ | ||||||||
| Refrigerant | R22 | ||||||||
| Power supply | 380V/3PH/50Hz | ||||||||
| Condenser | Fan Qty *Dia (mm) | 1*400 | 1*500 | 1*550 | 2*450 | 2*500 | 2*500 | 2*550 | |
| Air Flow(m3/h) | 3500 | 6500 | 7500 | 9000 | 13000 | 13000 | 15000 | ||
| Fan voltage | 380V/3PH/50Hz | ||||||||
| Compressor Capacity | Evaporating Tempe -5℃ | Cooling capacity(W) | 5800 | 8800 | 10400 | 12300 | 15900 | 21300 | 31600 |
| Input(KW) | 1.9 | 2.7 | 3.2 | 3.8 | 4.8 | 6.3 | 10.59 | ||
| Evaporating Tempe -10℃ | Cooling capacity(W) | 4800 | 7200 | 8500 | 9900 | 13000 | 17400 | 26100 | |
| Input(KW) | 1.8 | 2.7 | 3.1 | 3.8 | 4.8 | 6.3 | 9.92 | ||
| Evaporating Tempe -15℃ | Cooling capacity(W) | 4000 | 5800 | 6800 | 7900 | 10500 | 14100 | 21300 | |
| Input(KW) | 1.8 | 2.6 | 3 | 3.7 | 4.8 | 6.4 | 9.37 | ||
| Pipe | Suction inlet(mm) | 19 | 19 | 25 | 25 | 28 | 28 | 28 | |
| Liquid Dia (mm) | 16 | 16 | 19 | 19 | 19 | 19 | 22 | ||
| Condenser capacity (KW) | 8.7 | 13 | 17.4 | 23.2 | 29 | 34.8 | 43.5 | ||
| Overall Dimension L*W*H (mm) | 630*580*800 | 730*690*900 | 780*770*1100 | 1380*770*1000 | 1340*770*900 | 1440*800*1000 | 1440*900*1100 | ||
| Installation Dimension L*W (mm) | 340*550 | 420*660 | 490*730 | 870*730 | 970*770 | ||||
