Protection class:IP54
output:Micro-switch SPDT output
Contact life:10 ten thousand times
Medium temperature:-10~105C
Medium: air ,water and oil
Micro-switch parameter:15A(max.),250VAC/DC)
Proof pressure:15bar,
Material:brass or stainless steel housing ,stainless steel baffle

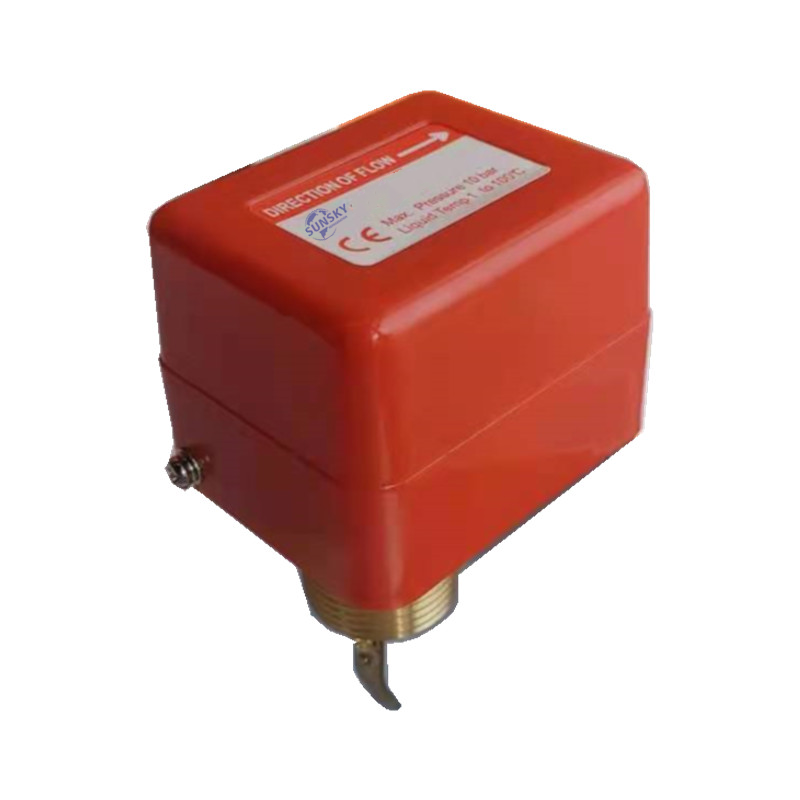

◆This product is used as flow control or cutoff protection of the liquid in pipelines.When the flow reaches the set volume,the switch turns on/off the automatically.
◆The set volume is adjustable and repeat working point operates stable.
◆Suitable mediums are water,oil,glycol and other non-hazard liquid,etc.
◆The connector of piping adopts the standard 1 inch NPT feature with thread as well as other special specifications with thread.
◆Maximum working pressure:1 Mpa

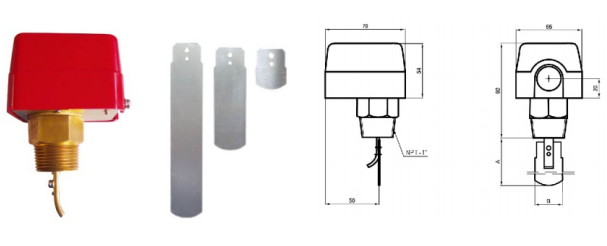

◆Five paddles are furnished to fit with pipes of different diameters.
◆Medium temperature: 0~120℃
Electric rating
| Rated voltage（V） Rated current(A) | Power COSφ | 125V AC | 250V AC | |
| Non-induction current | 1 | 15 | 15 | |
| Induction current | Constant | 0.75 | 3.5 | 2.5 |
| Transient | 0.75 | 21 | 15 | |
Technical Data
| Type | Piping Dimension (Inch) | Flow adjusting range when switch operating (L/min) | |||
| Minimum adjustment | Maximum adjustment | ||||
| Flow decreasing | Flow increasing | Flow decreasing | Flow increasing | ||
| SN/LFS-1 | 1 | 18 | 21 | 45 | 50 |
| 1-1/2 | 30 | 35 | 100 | 105 | |
| 2 | 50 | 58 | 150 | 155 | |
| 1-1/2 | 75 | 86 | 187 | 200 | |
| 3 | 100 | 115 | 225 | 260 | |
| 4 | 110 | 154 | 317 | 337 | |
| 5 | 170 | 236 | 462 | 490 | |
| 6 | 225 | 308 | 562 | 599 | |
| 8 | 707 | 854 | 1664 | 1727 | |
