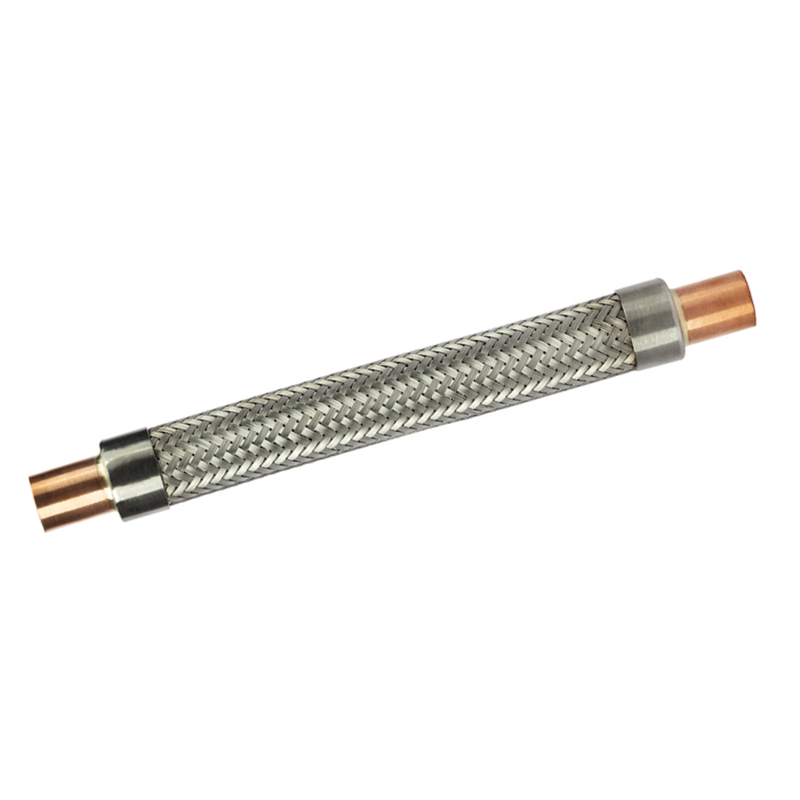

The vibration clamping bellows are connection tube for vibration resistance, which could be used to prevent tube from cracking due to high frequency vibration.
The vibration damping bellows are used as air suction and exhaust tube of compressor In the freezer, cold store and alt conditioning unit.
◆Made of full stainless steel bellows.
◆Applicable refrigerant:CFC,HCFC and HFC.
◆ODS connection and various lengths are available
◆Applicable medium temperature:-40 to +150℃

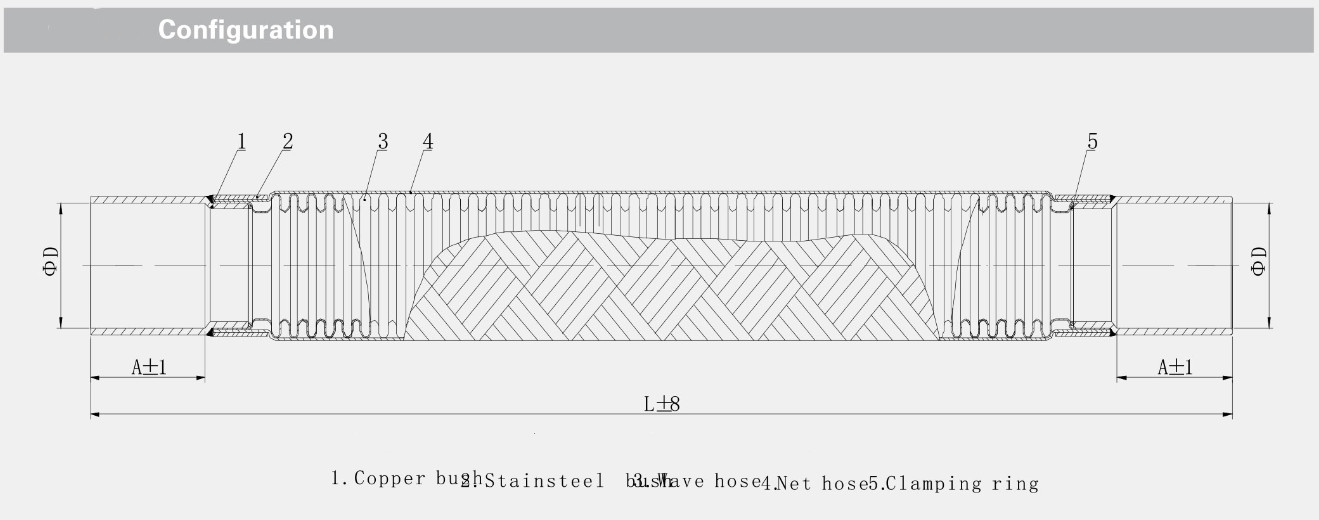

| Model | Connection | Dimensions(mm) | M.W.P. Working Pressure | Burst Pressure | |||||||
| (mm) | (inch) | A(I.Dia) | B(±1/8） | E (±1/8） | F (mm) | (psig) | (kgf/㎡) | (psig) | (kgf/㎡) | ||
| SN/VA-014(m) | SN/VAS-014(m) | 6 | 1/4 | 1/4 | 3/4 | 1/2 | 1.2 | 500 | 35 | 2500 | 50 |
| SN/VA-038(m) | SN/VAS-038(m) | 10 | 3/8 | 3/8 | 13/16 | 1/2 | 1.2 | 500 | 35 | 2500 | 50 |
| SN/VA-012(m) | SN/VAS-012(m) | 12 | 1/2 | 1/2 | 7/8 | 1/2 | 1.2 | 500 | 35 | 2500 | 50 |
| SN/VA-058(m) | SN/VAS-058(m) | 16 | 5/8 | 5/8 | 15/16 | 11/16 | 1.2 | 500 | 35 | 2500 | 50 |
| SN/VA-034(m) | SN/VAS-034(m) | 19 | 3/4 | 3/4 | 1-1/4 | 11/16 | 1.2 | 500 | 35 | 25000 | 50 |
| SN/VA-078(m) | SN/VAS-078(m) | 22 | 7/8 | 7/8 | 1-7/16 | 13/16 | 1.2 | 500 | 35 | 2500 | 50 |
| SN/VA-118(m) | SN/VAS-118(m) | 28 | 1-1/8 | 1-1/8 | 1-13/16 | 13/16 | 1.2 | 500 | 35 | 2500 | 50 |
| SN/VA-138(m) | SN/VAS-138(m) | 35 | 1-3/8 | 1-3/8 | 2 | 7/8 | 1.2 | 500 | 35 | 2500 | 50 |
| SN/VA-158(m) | SN/VAS-158(m) | 41 | 1-5/8 | 1-5/8 | 2-1/4 | 15/16 | 1.2 | 500 | 35 | 2500 | 50 |
| SN/VA-218(m) | SN/VAS-218(m) | 54 | 2-1/8 | 2-1/8 | 2-3/4 | 15/16 | 1.2 | 390 | 30 | 1950 | 40 |
| SN/VA-258(m) | SN/VAS-258(m) | 66 | 2-5/8 | 2-5/8 | 3-1/8 | 1-1/14 | 1.2 | 340 | 25 | 1700 | 30 |
| SN/VA-318(m) | SN/VAS-318(m) | 79 | 3-1/8 | 3-1/8 | 3-7/16 | 1-1/12 | 1.2 | 300 | 20 | 1500 | 30 |
| SN/VA-358(m) | SN/VAS-358(m) | 92 | 3-5/8 | 3-5/8 | 4-1/8 | 1-9/16 | 1.2 | 175 | 15 | 525 | 25 |
| SN/VA-418(m) | SN/VAS-418(m) | 105 | 4-1/8 | 4-1/8 | 4-7/16 | 1-9/16 | 1.2 | 175 | 15 | 525 | 25 |
