SEMI-HERMETIC RECIPOCATING SNBITZER 4CC 9.2 Compressor

Description：

Minimum space requirement

Very compact design

High precision machining

To ensure the compressor come with the standard

CNC processing center

Concentricity due to specific processing technology

Energy efficient

High cooling capacity and minimum energy requirement:

Highly efficient working valves

Minimum clearance volume

Effiicient, large-volume motor

Reduced flow losses at low condensing temperatures

Steady operation

Quiet with low vibration

Optimized mass balance

Low discharge gas pulsations due to special cylinder head design

Excellent stability

Wear resistant drive gear

Surface hardened eccentric shaft and crankshaft

Low friction bearings and aluminium pistons

Hard chrome plated piston ring

Features：

Suction gas temperature 20℃，50Hz，without liquid subcooling.

Additional cooling or limited suction gas temperature.

Technical Data ：

Refrigerating Capacity R134a
Model	Condensing Temp ℃	Refrigerating Capacity Qo(W) Power Consumption Pe(Kw)
		Evaporating Temperature(℃)
			12.5	10	7.5	5	0	-5	-10	-15	-20	-25	-30	-35	-40	-45	-50
4YG-7.2	50	Q	18800	17100	15520	14050	9170	7230	5580	4190
	50	P	4.99	4.86	4.73	4.58	3.92	3.54	3.13	2.69
	60	Q	16160	14680	13310	12030	7770	6090	4650	3440
	60	P	5.62	5.46	5.28	5.10	4.28	3.82	3.33	2.80
	70	Q	13580	12330	11170	10080	6460	5020	3800	2770
	70	P	6.27	6.06	5.84	5.61	4.63	4.09	3.51	2.90
4YD-6.2	30	Q	29550	26900	24450	22200	18170	14720	11770	9270	7170	5410	3950
	30	P	4.35	4.28	4.20	4.10	3.89	3.64	3.35	3.04	2.70	2.33	1.95
	40	Q	26000	23650	21500	19490	15910	12830	10210	7980	6100	4520	3210
	40	P	5.25	5.13	5.00	4.85	4.54	4.18	3.80	3.38	2.94	2.48	2.00
	50	Q	22550	20500	18630	16880	13740	11040	8730	6760	5100	3700	2540
	50	P	6.08	5.90	5.72	5.53	5.11	4.66	4.17	3.66	3.13	2.57	1.99
4YG-9.2	50	Q	22550	20550	18640	16890	13750	11040	8730	6770	5100
	50	P	6.07	5.9	5.72	5.53	5.12	4.66	4.18	3.66	3.12
	60	Q	19250	17500	15870	14360	11650	9320	7320	5620	4180
	60	P	6.86	6.63	6.39	6.14	5.62	5.07	4.49	3.89	3.25
	70	Q	15970	14520	13160	11900	9620	7660	5980	4560	3350
	70	P	7.57	7.29	6.99	6.69	6.07	5.43	4.76	4.06	3.34
4YD-8.2	30	Q	38400	35000	31800	28900	23600	19120	15280	12030	9280	6980	5080
	30	P	5.05	5.12	5.16	5.16	5.05	4.83	4.53	4.15	3.73	3.28	2.84
	40	Q	33950	30900	28050	25400	20700	16670	13220	10290	7810	5730	3990
	40	P	6.63	6.52	6.39	6.24	5.87	5.43	4.93	4.40	3.83	3.26	2.69
	50	Q	29350	26700	24200	21900	17730	14170	11110	8520	6320	4470	2930
	50	P	7.88	7.64	7.38	7.10	6.52	5.89	5.23	4.54	3.84	3.14	2.44
4YG-12.2	50	Q	29100	26400	23900	21550	17390	13810	10750	8140	5940
	50	P	7.51	7.33	7.12	6.88	6.34	5.73	5.06	4.37	3.66
	60	Q	24450	22150	19990	18000	14420	11340	8710	6460	4560
	60	P	8.49	8.18	7.86	7.51	6.79	6.02	5.21	4.40	3.58
	70	Q	19850	17950	16170	14520	11540	8970	6760	4880	3290
	70	P	9.15	8.75	8.33	7.91	7.04	6.14	5.24	4.33	3.43
4YD-10.2	30	Q	44850	40850	37150	33700	27550	22300	17790	13960	10730	8020	5760
	30	P	5.88	6.01	6.08	6.10	5.99	5.73	5.33	4.84	4.30	3.73	3.17
	40	Q	39600	36000	32700	29650	24150	19410	15360	11920	9000	6540	4480
	40	P	7.63	7.56	7.45	7.29	6.89	6.38	5.77	5.11	4.41	3.70	3.01
	50	Q	34200	31100	28200	25450	20600	16450	12870	9820	7230	5050	3220
	50	P	9.11	8.85	8.56	8.26	7.58	6.84	6.05	5.24	4.40	3.58	2.77
4YG-15.2	50	Q	34700	31450	28450	25650	20650	16350	12680	9560	6930
	50	P	8.78	8.54	8.28	8.00	7.36	6.65	5.88	5.07	4.24
	60	Q	29250	26500	23900	21500	17170	13450	10270	7550	5260
	60	P	9.80	9.44	9.06	8.67	7.83	6.94	6.01	5.05	4.07
	70	Q	23850	21550	19380	17380	13770	10650	7960	5670	3720
	70	P	10.58	10.12	9.64	9.15	8.14	7.09	6.00	4.89	3.76
4YD-12.2	30	Q	50900	46300	42100	38250	31300	25350	20250	15930	12290	9240	6700
	30	P	7.45	7.40	7.33	7.22	6.93	6.55	6.10	5.58	5.01	4.41	3.79
	40	Q	45300	41200	37450	33950	27700	22300	17680	13760	10440	7650	5320
	40	P	9.16	8.97	8.75	8.50	7.95	7.33	6.65	5.92	5.17	4.39	3.61
	50	Q	39550	35950	32600	29500	23900	19090	14980	11480	8510	6020	3930
	50	P	10.79	10.45	10.09	9.71	8.88	7.99	7.05	6.10	5.15	4.22	3.34
4YG-20.2	50	Q	40250	36500	33000	29800	23950	18970	14690	11040	7940
	50	P	10.42	10.11	9.77	9.41	8.63	7.77	6.85	5.88	4.89
	60	Q	33900	30650	27650	24850	19850	15530	11830	8690	6020
	60	P	11.65	11.20	10.72	10.22	9.18	8.10	6.98	5.84	4.70
	70	Q	27500	24850	22350	20000	15840	12240	9150	6520	4300
	70	P	12.59	12.01	11.42	10.82	9.57	8.30	7.02	5.75	4.52
4VD-15.2	30	Q	69100	62800	57000	51600	49150	33700	26700	20850	15920	11840	8500
	30	P	10.40	10.07	9.74	9.41	8.74	8.07	7.38	6.67	5.95	5.20	4.42
	40	Q	61300	55700	50400	45600	37000	29600	23350	18100	13700	10060	7080
	40	P	12.46	11.93	11.43	10.93	9.97	9.04	8.13	7.23	6.32	5.39	4.44
	50	Q	54100	49050	44400	40100	32400	25800	20250	15570	11660	8430	5800
	50	P	14.24	13.54	12.87	12.22	10.99	9.81	8.69	7.59	6.51	5.43	4.34

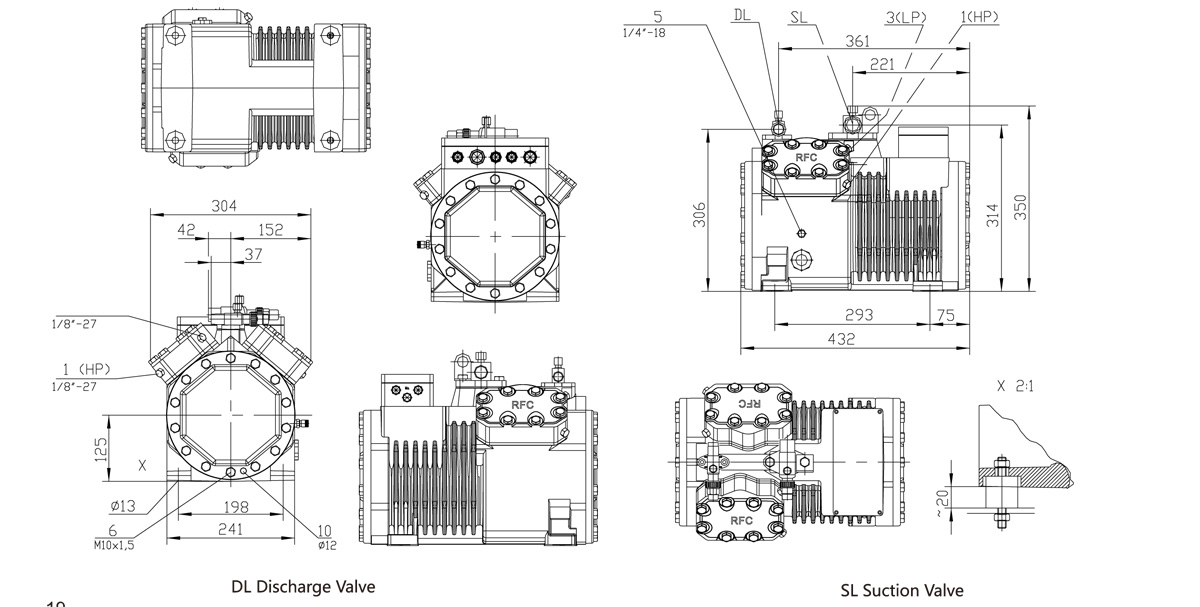

Drawings：

4CC-9.2 drawing.jpg
