Semi-hermetic Recipocating Bitzer 6F 30.2 Compressor

Description：

This is the Bezier original compressor 15HP /25HP/20HP/30HP medium and low temperature, using BSE32 refrigerant

Features：

Energy efficient

High cooling capacity and minimum energy requirement:

Highly efficient working valves

Minimum clearance volume

Effiicient, large-volume motor

Reduced flow losses at low condensing temperatures

Technical Data ：

Technical Data

Refrigeration Capacity R22

Model	Condensing Temp ℃	Refrigerating Capacity Qo(W) Power Consumption Pe(Kw)
		Evaporating Temperature(℃)
			12.5	10	7.5	5	0	-5	-10	-15	-20	-25	-30	-35	-40	-45	-50
4VD-20.2	30	Q						60000	48950	39500	31400	24500	18940	13920	9670
	30	P						14.64	13.67	12.63	11.51	10.29	9.65	8.40	7.10
	40	Q						53700	43700	35100	27750	21500	16080	11430	7530
	40	P						17.39	16.04	14.60	13.07	11.42	10.35	8.75	7.14
	50	Q						47800	38750	30950	24200	18350	13390	9230	5790
	50	P						20.10	18.40	16.65	14.89	13.14	11.23	9.19	7.06
4VG-30.2	30	Q	114200	104800	96000	87800	73100	60400	49300	39800	31650	24700	18840
	30	P	16.42	16.23	16.01	15.74	15.11	14.33	13.44	12.45	11.36	10.21	9.00
	40	Q	103000	94500	86500	79100	65700	54000	44000	35350	27950	21650	16330
	40	P	19.78	19.46	19.09	18.68	17.74	16.67	15.49	14.20	12.83	11.40	9.92
	50	Q	92300	84600	77400	70700	58600	48100	39000	31200	24500	18810
	50	P	23.4	22.9	22.3	21.70	20.40	19.04	17.57	16.50	14.49	12.91
6WD-25.2	30	Q						78500	64100	51700	41050	31950	24600	18010	12460
	30	P						19.10	17.89	16.51	14.96	13.23	12.34	10.70	8.99
	40	Q						70300	57200	45850	36100	27750	20750	14710	9660
	40	P						22.40	20.70	18.84	16.79	14.63	13.01	10.96	8.86
	50	Q						62600	50600	40250	31350	23700	17240	11870	7440
	50	P						25.60	23.50	21.20	18.68	16.28	13.81	11.27	8.66
6WG-35.2	30	Q	149100	136900	125500	114800	95600	79000	64500	52000	41300	32200	24400
	30	P	20.90	20.60	20.40	20.00	19.27	18.34	17.24	15.96	14.52	12.90	11.12
	40	Q	134600	123500	113200	10350	86000	70800	57600	46200	36400	28050	20900
	40	P	25.20	24.70	24.30	23.70	22.60	21.30	19.78	18.12	16.29	14.30	12.14
	50	Q	120900	110800	101400	92700	76800	63000	51000	40600	31700	24050
	50	P	29.40	28.80	28.10	27.40	25.90	24.20	22.30	20.20	17.92	15.50
6WD-30.2	30	Q						90000	73500	59300	47100	36750	28400	20850	14480
	30	P						22.00	20.50	18.96	17.27	15.43	14.48	12.59	10.65
	40	Q						80600	65600	52700	41600	32200	24100	17130	11280
	40	P						26.10	24.10	21.90	19.61	17.14	15.50	13.10	10.68
	50	Q						71700	58200	46500	36300	27500	20050	13840	8670
	50	P						30.10	27.60	25.00	22.31	19.71	16.85	13.79	10.58
6WG-40.2	30	Q	171300	157200	144100	131800	109700	90600	74000	59700	47500	37100	28300
	30	P	24.60	24.40	24.00	23.60	22.70	21.50	20.20	18.68	17.05	15.32	13.51
	40	Q	154600	141800	129800	118600	98500	81100	66000	53000	41900	32450	24500
	40	P	29.70	29.20	28.60	28.00	26.60	25.00	23.20	21.30	19.26	17.11	14.89
	50	Q	138500	127000	116200	106100	88000	72200	58500	46800	36750	28200
	50	P	35.20	34.40	33.50	32.60	30.70	28.60	26.40	24.10	21.70	19.38
6WD-40.2	30	Q						106100	86800	70100	55900	43800	34000	25100	17600
	30	P						27.40	25.50	23.50	21.20	18.92	17.07	14.95	12.96
	40	Q						95300	77700	62600	49650	38700	29150	20900	13960
	40	P						31.90	29.50	27.00	24.30	21.40	18.61	15.80	13.06
	50	Q						85100	69200	55600	43600	33250	24450	17060	10890
	50	P						36.40	33.50	30.40	27.04	23.71	20.21	16.60	12.94
6WG-50.2	30	Q	201400	184800	169400	155000	129100	106700	87300	70600	56300	44150	33900
	30	P	31.90	31.40	30.80	30.20	28.70	27.10	25.30	23.30	21.20	18.97	16.66
	40	Q	181700	166700	152800	139800	116300	95900	78300	63100	50100	39050	29700
	40	P	37.60	36.90	36.10	35.20	33.30	31.30	29.00	26.60	24.00	21.30	18.44
	50	Q	163200	149700	137100	125300	104100	85700	69700	56000	44250	34250
	50	P	43.00	42.10	41.10	40.10	37.90	35.50	32.80	29.90	26.80	23.50
6WDS-20.2	30	Q									35500	29700	24500	19970	15960	12400	9180
	30	P									15.46	14.21	12.95	11.68	10.41	9.15	7.91
	40	Q									34750	29100	24050	19560	15560	11940	8590
	40	P									17.61	16.21	14.64	13.15	11.67	10.19	8.71
	50	Q									34050	28500	23600	19210	15220
	50	P									19.74	18.00	16.29	14.56	12.80
6WDS-25.2	30	Q									40800	34050	28150	22900	18320	14230	10540
	30	P									17.75	16.31	14.86	13.41	11.95	10.51	9.08
	40	Q									39900	33400	27600	22450	17860	13700	9860
	40	P									20.21	18.51	16.81	15.10	13.40	11.70	10.00
	50	Q									39100	32750	27100	22050	17470
	50	P									22.66	20.67	18.70	16.72	14.70
6WDS-30.2	30	Q									48800	40750	33700	27400	21900	17030	12610
	30	P									21.23	19.52	17.78	16.04	14.30	12.57	10.86
	40	Q									47750	39950	33000	26850	21350	16390	11790
	40	P									24.18	22.15	20.11	18.07	16.03	13.99	11.96
	50	Q									46750	39200	32450	26400	20900
	50	P									27.12	24.73	22.37	20.01	17.59

Refrigerating Capacity R404A/R507A
Model	Condensing Temp ℃	Refrigerating Capacity Qo(W) Power Consumption Pe(Kw)
		Evaporating Temperature(℃)
			7.5	5	0	-5	-10	-15	-20	-25	-30	-35	-40	-45	-50	-55	-60	-65	-70
4VD-20.2	30	Q				67100	55500	45400	36750	29350	23000	17600	13060	9260
	30	P				18.22	17.12	15.89	14.55	13.12	11.62	10.08	8.53	6.97
	40	Q				57200	47300	38700	31200	24800	19250	14540	10540	7160
	40	P				20.94	19.36	17.68	15.93	14.13	12.30	10.47	8.65	6.89
	50	Q					38750	31650	25450	20100	15480	11510	8120
	50	P					21.25	19.15	17.02	14.87	12.73	10.63	8.60
4VG-30.2	30	Q	103800	95300	79900	66500	54900	44900	36250	28800	22450	17040	12480
	30	P	19.21	19.07	18.57	17.81	16.84	15.70	14.41	13.02	11.57	10.09	8.61
	40	Q	89100	81800	68600	57000	47000	38250	30700	24200	18610	13860	9850
	40	P	23.37	22.88	21.73	20.38	18.88	17.26	15.56	13.81	12.06	10.33	8.68
	50	Q	74300	68200	57100	47400	38900	31500	25100	19580	14840	10810	7410
	50	P	27.01	26.20	24.46	22.58	20.60	18.56	16.50	14.45	12.45	10.54	8.76
6WD-25.2	30	Q				87900	72500	59300	47800	38000	29700	22650	16740	11850
	30	P				23.5	22.15	20.58	18.83	16.94	14.95	12.89	10.81	8.75
	40	Q				74700	61600	50200	40400	31900	24700	18590	13440	9130
	40	P				27.2	25.18	23	20.68	18.28	15.82	13.36	10.92	8.54
	50	Q					50500	41150	33000	25950	19920	14760	10390
	50	P					27.78	25.02	22.18	19.31	16.43	13.59	10.93
6WG-35.2	30	Q	136000	124800	104500	86900	71600	58400	47000	37200	28800	21700	15720
	30	P	25.11	24.84	24.07	23.04	21.77	20.29	28.64	16.83	14.91	12.89	10.81
	40	Q	116300	106600	89300	74100	60900	49450	39600	31100	23800	17670	12480
	40	P	29.81	29.2	27.79	26.14	24.3	22.29	20.14	17.88	15.53	13.13	10.71
	50	Q	96600	88600	74100	61400	50400	40700	32400	25250	19160	14000	9670
	50	P	34.17	33.23	31.19	28.96	26.56	24.04	21.41	18.71	15.96	13.2	10.45
6WD-30.2	30	Q					98300	81200	66400	53600	42700	33350	25400	18760	13210
	30	P					26.77	2.507	23.21	21.2	19.08	16.84	14.54	12.17	9.76
	40	Q					84000	69300	56600	45550	36050	27900	21000	15130	10210
	40	P					30.86	28.5	26	23.38	20.68	17.9	15.07	12.21	9.34
	50	Q						57600	46900	37600	29550	22600	16720	11710
	50	P						31.43	28.35	25.18	21.94	18.67	15.37	12.06
6WG-40.2	30	Q	156100	143200	1200001	99900	82500	67400	54300	43150	33600	25550	18730
	30	P	30.46	29.91	28.66	27.2	25.57	23.77	21.82	19.75	17.56	15.28	12.93
	40	Q	133400	122400	102700	85400	70300	57300	46000	36300	28000	20900	14940
	40	P	35.49	34.61	32.7	30.62	28.38	26.02	23.54	20.96	18.3	15.57	12.8
	50	Q	110800	101800	85400	70900	58300	47350	37800	29550	22500	16450	11330
	50	P	40.19	38.97	36.42	33.73	30.91	27.99	24.99	21.92	18.79	15.63	12.46
6WD-40.2	30	Q				118800	98100	80100	64700	51400	40100	30500	22400	15600
	30	P				31.46	29.74	27.69	25.37	22.84	20.14	17.34	14.49	11.63
	40	Q				100900	83100	67600	54300	42800	32950	24600	17570	11680
	40	P				36	33.43	30.59	27.55	24.36	21.06	17.73	14.4	11.14
	50	Q					68300	55300	44050	34300	26050	18990	13060
	50	P					36.68	33.08	29.33	25.49	21.62	17.76	13.98
6WG-50.2	30	Q	184400	169300	142200	118600	98100	80400	65200	52100	40900	31400	23450
	30	P	36.24	35.76	34.49	32.87	30.95	28.79	26.43	23.94	21.38	18.79	16.23
	40	Q	157900	145000	121700	101300	83600	68300	55000	43600	33850	25600	18620
	40	P	43.13	42.1	39.8	37.22	34.43	31.47	28.4	25.28	22.15	19.09	16.14
	50	Q	131000	120200	100800	83800	68900	56000	44800	35150	26950	19960	14090
	50	P	49.8	48.21	44.85	41.3	37.6	33.83	30.02	26.24	22.53	18.97	15.59
6WDS-20.2	30	Q								31900	27450	23300	19440	15910	12760	10020	7690	5770	4230
	30	P								16.43	15.02	13.64	12.3	11	9.76	8.57	7.44	6.4	5.4
	40	Q								30600	26350	22350	18610	15230	12240	9640	7420	5540
	40	P								18.53	16.9	15.32	13.79	12.33	10.92	9.57	8.29	7.07
	50	Q								29350	25200	21350	17810	14630	11800	9280
	50	P								20.63	18.79	17.01	15.3	13.65	12.07	10.55
6WDS-25.2	30	Q								36200	31300	26600	22250	18220	14620	11480	8830	6630	4870
	30	P								18.84	17.27	15.71	14.16	12.65	11.19	9.8	8.49	7.29	6.2
	40	Q								34900	30100	25500	21300	17420	14000	11040	8500	6350
	40	P								21.27	19.4	17.6	15.85	14.16	12.55	11	9.52	8.13
	50	Q								33450	28750	24350	20350	16720	13490	10620
	50	P								23.71	21.58	19.35	17.56	15.67	13.85	12.1
6WDS-30.2	30	Q								43400	37400	31750	26500	21700	17420	13690	10540	7920	5800
	30	P								22.53	20.65	18.78	16.94	15.15	13.42	11.77	10.2	8.74	7.4
	40	Q								41500	35700	30300	25300	20700	16680	13170	10150	7590
	40	P								25.2	23.1	21.01	18.96	16.95	15	13.14	11.37	9.72
	50	Q								39500	34000	28850	24100	19870	16060	12650
	50	P								28.07	25.69	23.33	21.01	18.75	16.57	14.49

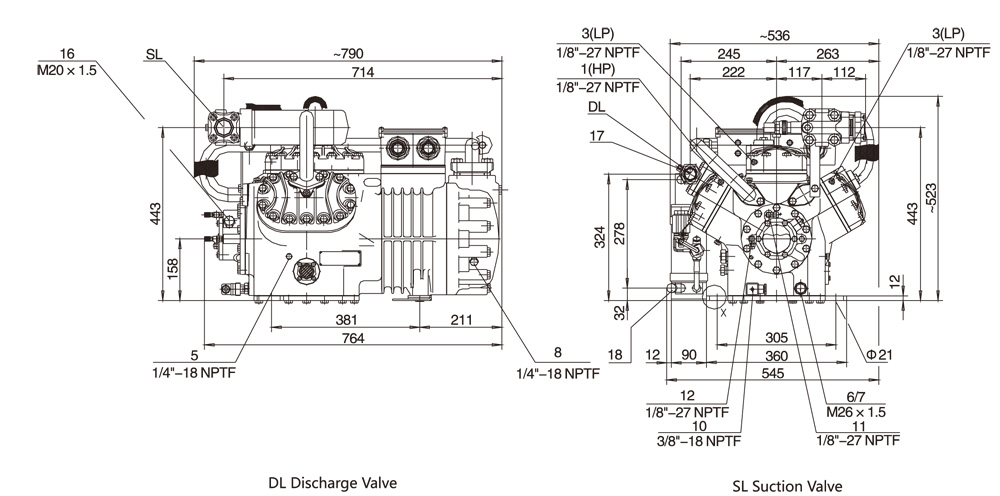

Drawings：
