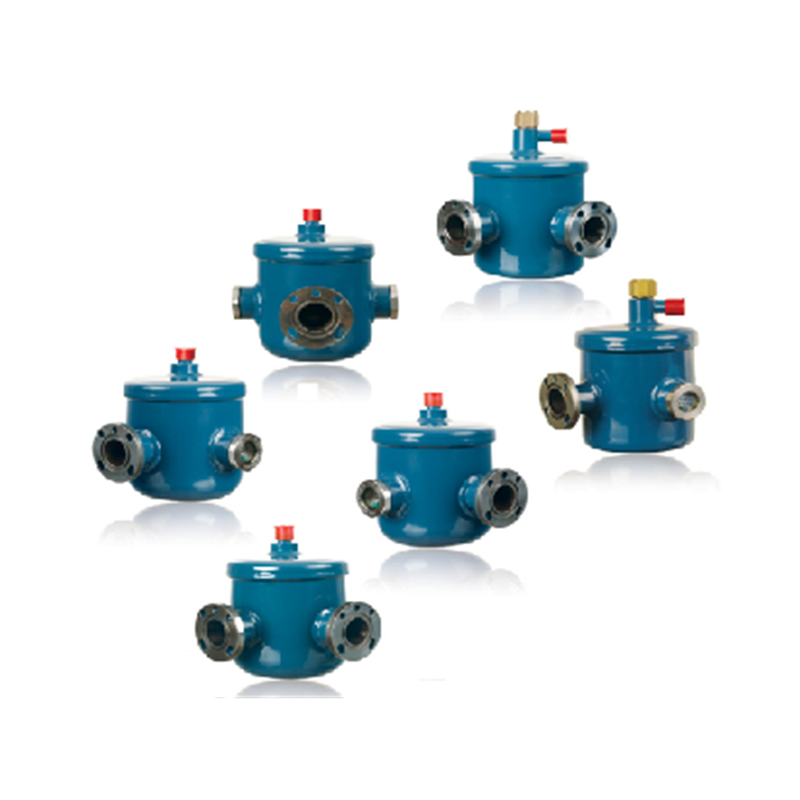

SN/OLR OIL LEVEL REGULATORS

◆ Provide permanent control over oil coming to compressor in multiple parallel compressor systems.

◆ Completely eliminate recycling risk of liquid resulting from compressor.

◆ Used between oil tank and compressor, and directly mounted to compressor’s carter.

◆ Mechnical Type product in 2 different models; fixed and adjustable.

◆ The products are designed for 3-bolt & 4-bolt flange systems.

◆ The product operates with floating ball system。

◆ Oil level can be easily followed thanks to sight glasses provided in the product.

◆ We strongly recommend using oil filters together with oil level regulators.

◆ 3/8” SAE input connection is available.

◆ Can be easily mounted to compressors thanks to flange connection suitable for any type of compressor

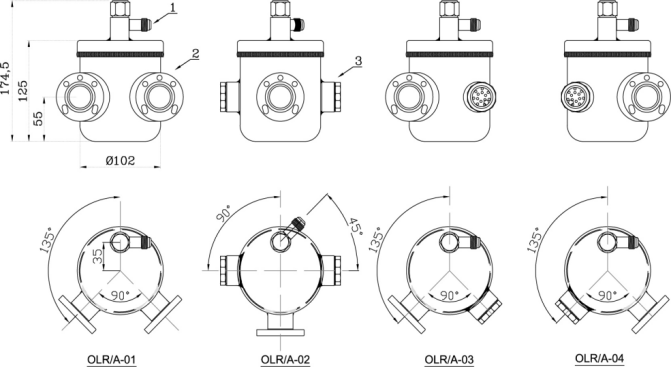

◆ BLR/OLR-01 Model is a product with 2 flange connections.

◆ BLR/OLR-02 Model is a product with 1 flange and 2 sight glass connections.

◆ BLR/OLR-03 and 04 Models are products with 1 flange and 1 sight glass connections. These are more economic and easy-to-use products

◆ Adapters especially designed for compressors with different connections can be seen on page 44

◆ Different connection may be used upon request.

Model 型号	Connections 接口尺寸			Regulator Type 控制类型	Allow. Oil Pressure Diff.[bar] 允许油压差值	Allowable Operating Press. 允许工作压力	Allow. Operating Temperature 允许工作温度	CE PED 97/23/EC

	1	2	3					PED 97/23/EC
	(mm)	(mm)	(mm)					33 Bar
SN/OLR-01	3/8" SAE Flare Inlet	3 Bolt 1.7/8" B.C. & 4 Bolt 50mm B.C.	-	Fixed 不可调式	0.35 to 2.1	0 to 31 bar	0? C to + 110? C	SEP
SN/OLR-02			2 x SW36
SN/OLR-03			1 x SW36
SN/OLR-04			1 x SW36

Model 型号	Connections 接口尺寸			Regulator Type 控制器类型	Allow. Oil Pressure Diff.[bar] 允许油压差值	Allowable Operating Press. 允许工作压力	Allow. Operating Temperature 允许工作温度	CE PED 97/23/EC

	1	2	3					PED 97/23/EC
	(mm)	(mm)	(mm)					33 Bar
SN/OLRA-01	3/8" SAE Flare Inlet	3 Bolt 1.7/8" B.C. & 4 Bolt 50mm B.C.	-	Adjustable 可调式	0.35 to 6.2	0 to 31 bar	0? C to + 110? C	SEP
SN/OLRA-02			2 x SW36
SN/OLRA-03			1 x SW36
SN/OLRA-04			1 x SW36
