External oil separator for screw compressor is specially designed for thescrew compressor unit with oil separator, specially for the parallel compressor unit. encsure supply enough lubricant oil to every compressor and then make compressor run very well.
Available to the minimal lubricant oil enter in the system, so that increase heat exchange efficiency
To install the oil heater in the oil separator
Max working pressure 3.1MPa,Maxworkingtemperature120℃
Applicable for HFC,HCFC,CFC refrigerant with their associated with oil
Model型号 | SN/OA1954 | SN/OA4188 | SN/OA9111 | SN/OA14111 | SN/OA25112 | ||
GVN Corss Reference GVN参考型号 | OS/D-180x2 | OS/D-400x2 | OS/D-900x2 | OS/D-1300x2 | |||
Bitzer Cross Reference 比泽尔参考型号 | OA1954 | OA4188 | OA9111 | OA14111 | OA25112 | ||
WTK Cross Reference WTK参考型号 | RS 180 | RS 400 | RS 900 | RS 1300 | |||
COMPRESSOR SUCTION VOLUME 压缩机的吸气量 | |||||||
Air Conditioning 空调 | m/h | 270 | 490 | 940 | 1320 | ||
Cooling and High Temperature 冷却高温 | R134a R22 | m/h | 250 | 580 | 1160 | 1320 | 2050 |
R404a R507a | m/h | 220 | 440 | 840 | 1180 | 1900 | |
Cooling and Medium Temperature 冷却中温 | R134a R22 | m/h | 300 | 660 | 1320 | 1320 | 2300 |
R404a R507a | m/h | 300 | 620 | 1180 | 1320 | 2100 | |
Cooling and Low Temperature 冷却低温 | R404a R507a | m/h | 300 | 660 | 1320 | 1600 | 2500 |
NOMINAL DATA 名义参数 | |||||||
Total Volume 总容积 | dm3 | 40 | 120 | 220 | 330 | 655 | |
Weight 重量 | kg | 45 | 95 | 180 | 290 | 565 | |
Maxiumum Oil Charge 最大换油量 | dm3 | 19 | 50 | 90 | 130 | 250 | |
Oil Heater | Watt | 1*140 | 2*140 | 3*140 | 3*140 | 3*200 | |
Max. No. of Compressor 最大的压缩机数量 | HS.53 | N. | 2 | 5 | None | None | None |
HS.64 | 1 | 4 | 6 | ||||
HS.74 | 1 | 2 | 5 | 6 | 6 | ||

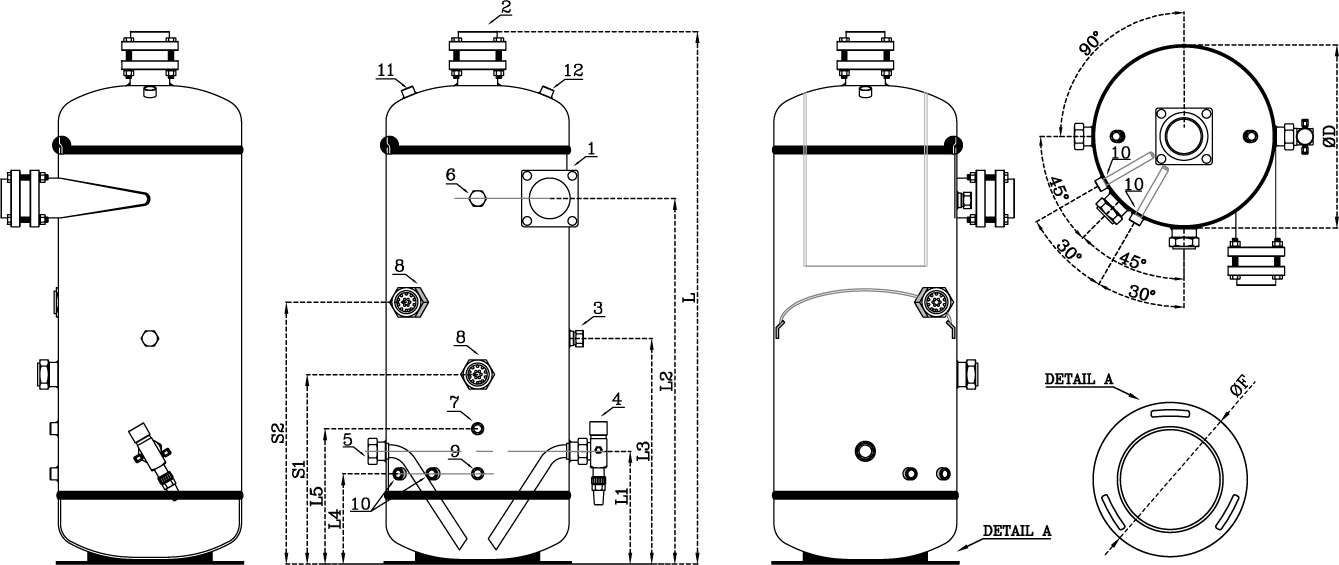

DIMENSIONS尺寸 | |||||||
? D | mm | ? 324 | ? 406 | ? 500 | ? 600 | ? 762 | |
L | mm | 835 | 1180 | 1620 | 2020 | 1894 | |
L1 | mm | 210 | 250 | 320 | 320 | 758 | |
L2 | mm | 550 | 810 | 1170 | 1470 | 1328 | |
L3 | mm | 390 | 500 | 620 | 650 | ||
L4 | mm | 170 | 200 | 220 | 220 | 208 | |
L5 | mm | 230 | 300 | 340 | 340 | 308 | |
S1 | mm | 300 | 420 | 500 | 560 | ||
S2 | mm | 400 | 580 | 750 | 920 | ||
? F | mm | VFC-320 | VFC-415 | VFC-550 | VFC-650 | ||
CONNECTIONS | |||||||
1 | Refrigeration Inlet Connection 制冷进口 | 1 | ODS 54 | OD 76 | OD 92 | OD 114 | |
2 | Refrigeration outlet Connection 制冷出口 | 2 | ODS 54 | OD 76 | OD 92 | OD 114 | |
3 | Oil Inlet Connection 油进口 | 4 | 7/8" Rot. Valve | ||||
4 | Oil Outlet Connection 油出口 | 5 | 7/8" Rot. Valve | 1 3/8" Rot. Valve | 1 5/8" Rot. Valve | 2 1/8" Rot. Valve | |
5 | Parallel Compressor Oil Outlet Connection | 4 | 1 1/4" Rtlk & Plug | 1 3/4" Rtlk & Plug | 2 1/4" Rtlk & Plug | 2 1/4" Rtlk & Plug | |
6 | Service Valve Connection 相关阀连接 | 3 | 1 1/4" 12 UNF & Plug | ||||
7 | Oil Level Sensor Connection 油位传感器连接 | 7 | M20x1.5 ( For LLS-01 ) | ||||
8 | Sight Glasses 视液镜 | 8 | SG-1 3/4" | SG-2 1/4" | SG-DN80 | SG-DN80 | |
9 | Oil Heaters 油加热器 | 10 | 2x 1/2"NPTF & Plug | 2x 1/2"NPTF & Plug | 3x 1/2"NPTF & Plug | 4x 1/2"NPTF & Plug | |
10 | Thermostat 温控器 | 10 | 1/2"NPTF & Plug | ||||
11 | Service Valve Connection 检修阀接口 | - | 3/8" NPT Connection & Plug | ||||
12 | Safety Valve Connection 安全阀接口 | - | 1/2" NPT Connection & Plug | ||||
CERTIFICATES | |||||||
CATEGORY / 归类 | 97/23/EC | [ B + C1 ] III | [ B + D ] IV | [ B + D ] IV | [ B + D ] IV | [ B + D ] IV | |
