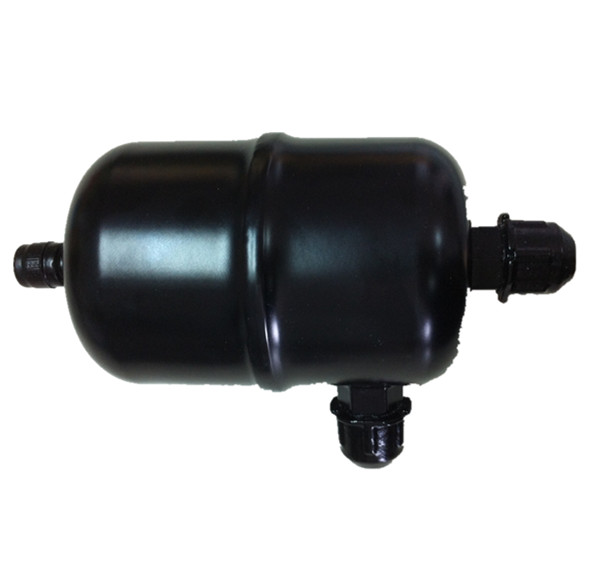

SN/AOS-043 Automobile Oil Separator is designed for TRUCK AND BUS air conditioning and refrigeration system. To Prevent the oil flow with the gas and influence the evaporator refrigeration capacity and condenser heat trap, normally there is one oil separaotor installed between compressor and condenser.
WORKING PRINCIPLE
The working principle is to use the differential pressure to automaticly return the oil separated from the gas to crankcase to guarantee the enough oil inside compressor, so that it can guarantee the compressor service life and refrigeration capacity
| Model型号 | SN/OA1954 | SN/OA4188 | SN/OA9111 | SN/OA14111 | SN/OA25112 | ||
| GVN Corss Reference GVN参考型号 | OS/D-180x2 | OS/D-400x2 | OS/D-900x2 | OS/D-1300x2 | |||
| Bitzer Cross Reference 比泽尔参考型号 | OA1954 | OA4188 | OA9111 | OA14111 | OA25112 | ||
| WTK Cross Reference WTK参考型号 | RS 180 | RS 400 | RS 900 | RS 1300 | |||
| COMPRESSOR SUCTION VOLUME 压缩机的吸气量 | |||||||
| Air Conditioning 空调 | m/h | 270 | 490 | 940 | 1320 | ||
| Cooling and High Temperature 冷却高温 | R134a R22 | m/h | 250 | 580 | 1160 | 1320 | 2050 |
| R404a R507a | m/h | 220 | 440 | 840 | 1180 | 1900 | |
| Cooling and Medium Temperature 冷却中温 | R134a R22 | m/h | 300 | 660 | 1320 | 1320 | 2300 |
| R404a R507a | m/h | 300 | 620 | 1180 | 1320 | 2100 | |
| Cooling and Low Temperature 冷却低温 | R404a R507a | m/h | 300 | 660 | 1320 | 1600 | 2500 |
| NOMINAL DATA 名义参数 | |||||||
| Total Volume 总容积 | dm3 | 40 | 120 | 220 | 330 | 655 | |
| Weight 重量 | kg | 45 | 95 | 180 | 290 | 565 | |
| Maxiumum Oil Charge 最大换油量 | dm3 | 19 | 50 | 90 | 130 | 250 | |
| Oil Heater | Watt | 1*140 | 2*140 | 3*140 | 3*140 | 3*200 | |
| Max. No. of Compressor 最大的压缩机数量 | HS.53 | N. | 2 | 5 | None | None | None |
| HS.64 | 1 | 4 | 6 | ||||
| HS.74 | 1 | 2 | 5 | 6 | 6 | ||
| DIMENSIONS尺寸 | |||||||
| ? D | mm | ? 324 | ? 406 | ? 500 | ? 600 | ? 762 | |
| L | mm | 835 | 1180 | 1620 | 2020 | 1894 | |
| L1 | mm | 210 | 250 | 320 | 320 | 758 | |
| L2 | mm | 550 | 810 | 1170 | 1470 | 1328 | |
| L3 | mm | 390 | 500 | 620 | 650 | ||
| L4 | mm | 170 | 200 | 220 | 220 | 208 | |
| L5 | mm | 230 | 300 | 340 | 340 | 308 | |
| S1 | mm | 300 | 420 | 500 | 560 | ||
| S2 | mm | 400 | 580 | 750 | 920 | ||
| ? F | mm | VFC-320 | VFC-415 | VFC-550 | VFC-650 | ||
| CONNECTIONS | |||||||
| 1 | Refrigeration Inlet Connection 制冷进口 | 1 | ODS 54 | OD 76 | OD 92 | OD 114 | |
| 2 | Refrigeration outlet Connection 制冷出口 | 2 | ODS 54 | OD 76 | OD 92 | OD 114 | |
| 3 | Oil Inlet Connection 油进口 | 4 | 7/8" Rot. Valve | ||||
| 4 | Oil Outlet Connection 油出口 | 5 | 7/8" Rot. Valve | 1 3/8" Rot. Valve | 1 5/8" Rot. Valve | 2 1/8" Rot. Valve | |
| 5 | Parallel Compressor Oil Outlet Connection 并联压缩机油连接 | 4 | 1 1/4" Rtlk & Plug | 1 3/4" Rtlk & Plug | 2 1/4" Rtlk & Plug | 2 1/4" Rtlk & Plug | |
| 6 | Service Valve Connection 相关阀连接 | 3 | 1 1/4" 12 UNF & Plug | ||||
| 7 | Oil Level Sensor Connection 油位传感器连接 | 7 | M20x1.5 ( For LLS-01 ) | ||||
| 8 | Sight Glasses 视液镜 | 8 | SG-1 3/4" | SG-2 1/4" | SG-DN80 | SG-DN80 | |
| 9 | Oil Heaters 油加热器 | 10 | 2x 1/2"NPTF & Plug | 2x 1/2"NPTF & Plug | 3x 1/2"NPTF & Plug | 4x 1/2"NPTF & Plug | |
| 10 | Thermostat 温控器 | 10 | 1/2"NPTF & Plug | ||||
| 11 | Service Valve Connection 检修阀接口 | - | 3/8" NPT Connection & Plug | ||||
| 12 | Safety Valve Connection 安全阀接口 | - | 1/2" NPT Connection & Plug | ||||
| CERTIFICATES | |||||||
| CATEGORY / 归类 | 97/23/EC | [ B + C1 ] III | [ B + D ] IV | [ B + D ] IV | [ B + D ] IV | [ B + D ] IV | |
| Refrigerant Type 制冷剂类型 = HFC, HCFC, NH3 | |||||||
