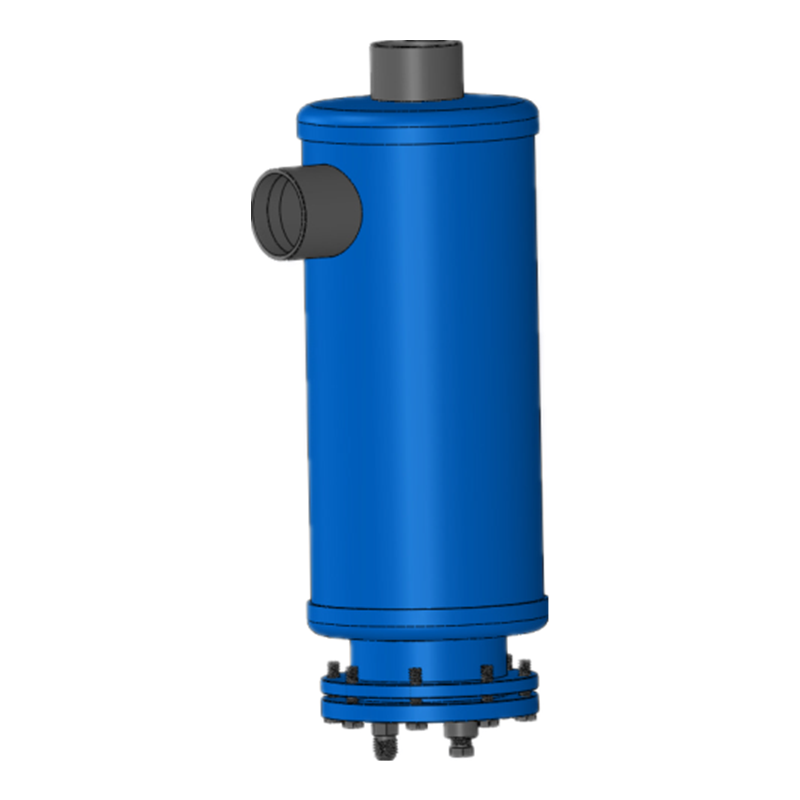

SN/S Helical Oil Separator

Description：

◆Helical oil separator can be used in wide variety of applications.Common applications include multi-compressor racks and remote condensing units.

◆The function of BLR/S helical oil separator is to efficiently romove oil from the discharge gas and return it to the compressor ,either directly or indirectly.This helps maintain the compressor crankcase oil level and raises the efficiency of the system by preventing excessive oil circulation.

◆The standard product range is designed for use with HCFC and HFC refrigerants,along with their associated oils.The SN range is suitable for use with HCFC,HFC and ammonia oils.

Features：

Technical Data ：

Model	Connection	A	B	C	D	E	F	G	Mounting details	Drawing reference	Henry reference model

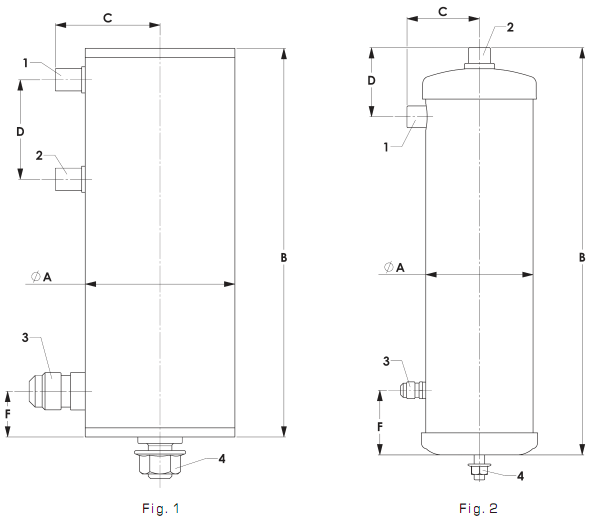

SN/S-5180	1/4	64	166	45	43	N/A	19.5	N/A	M10	fig.1	S-5180
SN/S-5181	3/8	64	195	45	71	N/A	19.5	N/A	M10	fig.1	S-5181
SN/S-5182	1/2	102	333	69	64	N/A	58.5	N/A	M10	fig.2	S-5182-CE
SN/S-5185	5/8	102	384	69	66	N/A	58.5	N/A	M10	fig.2	S-5185-CE
SN/S-5187	7/8	102	434	74	76	N/A	58.5	N/A	M10	fig.2	S-5187-CE
SN/S-5188	1 1/8	102	483	75	78	N/A	58.5	N/A	M10	fig.2	S-5188-CE
SN/S-5190	1 3/8	152	384	108	91	N/A	60.5	N/A	M10	fig.2	S-5190-CE
SN/S-5192	1 5/8	152	428	108	98	N/A	60.5	N/A	M10	fig.2	S-5192-CE
SN/S-5194	2 1/8	152	436	114	105	N/A	60.5	N/A	M10	fig.2	S-5194-CE

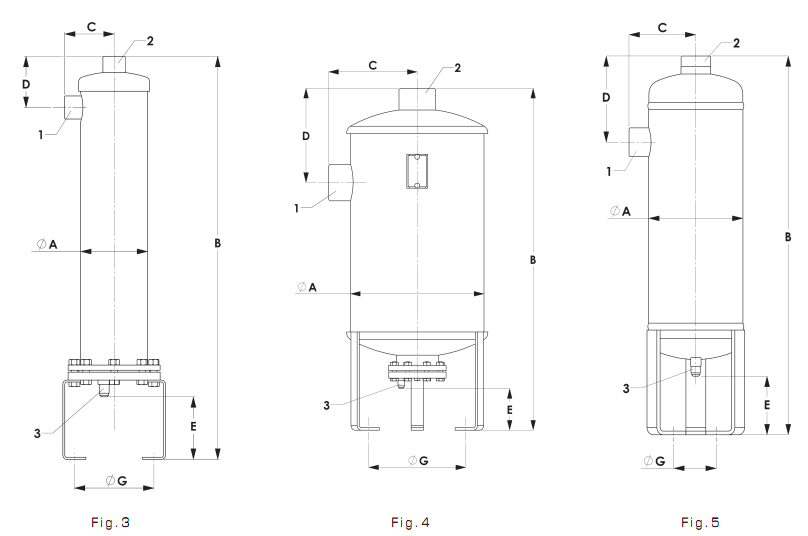

SN/S-5285	5/8	102	516	69	66	95	N/A	120.7	2*φ11 mm holes	fig.3	S-5285-CE
SN/S-5287	7/8	102	563	74	76	95	N/A	120.7	2*φ11 mm holes	fig.3	S-5287-CE
SN/S-5288	1 1/8	102	614	75	78	95	N/A	120.7	2*φ11 mm holes	fig.3	S-5288-CE
SN/SN-5190	3 1/8	152	508	108	91	99	N/A	113	2*φ14 mm holes	fig.3	SN-5190-CE
SN/SN-5192	1 5/8	152	559	108	98	99	N/A	113	2*φ14 mm holes	fig.3	SN-5192-CE
SN/SN-5194	2 1/8	152	559	114	105	99	N/A	113	2*φ14 mm holes	fig.3	SN-5194-CE
SN/S-5411	1 5/8	219	650	148	164	100	N/A	166	3*φ14 mm holes	fig.4	S-5411-CE
SN/S-5412	2 1/8	219	650	148	164	100	N/A	166	3*φ14 mm holes	fig.4	S-5412-CE
SN/S-5413	2 5/8	273	758	183	201	125	N/A	223	3*φ14 mm holes	fig.4	S-5413-CE
SN/S-5414	3 1/8	324	831	215	229	100	N/A	273	3*φ14 mm holes	fig.4	S-5414-CE
