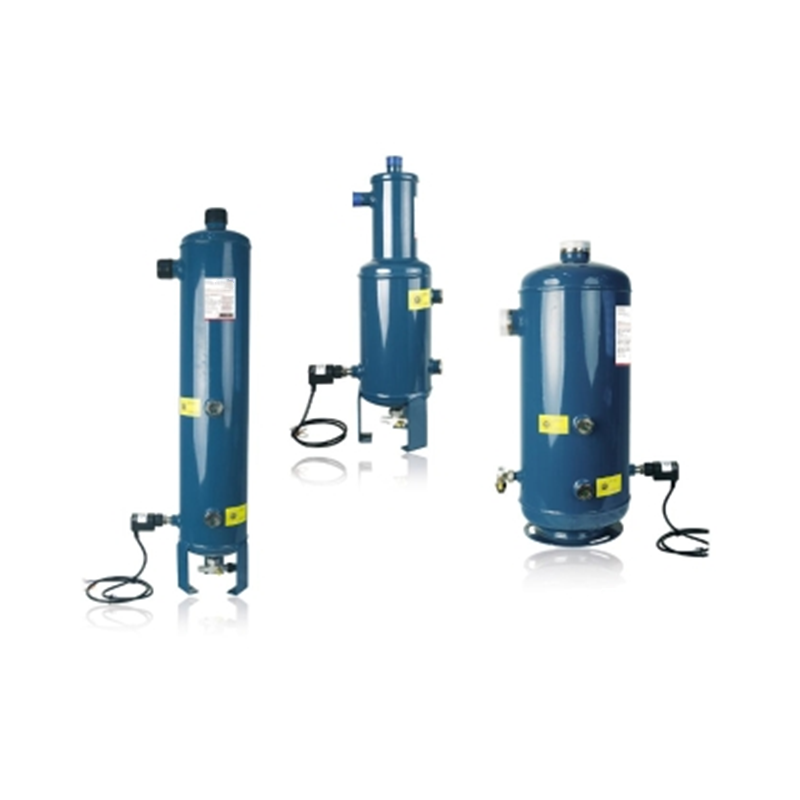

◆Helical type oil separators with tank can be used in various applications.

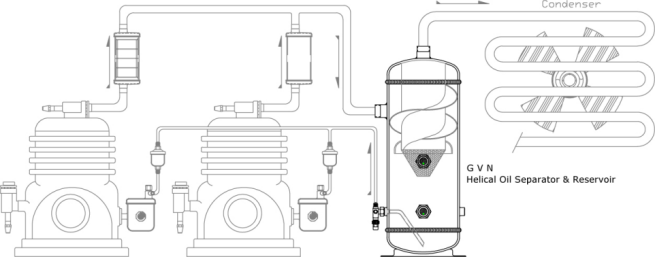

◆Multi-compressor units are among widely used applications

◆Helical type oil separators with tank are designed for high-pressure oil management systems.

◆These products are especially designed for scroll and piston type compressors.

◆Not recommended for screw or rotary compressors.

◆Standard product series are designed for usage with relevant oils and HFC cooling substances.

◆Spiral (helix) system and stainless filter system in the product are more effective in separating oil than standard oil separators.

◆The product provides 99% output in case of selecting model suitable for the system.

◆Gas/oil mixture is moved along spiral path by centrifugal force, and oil particles revolve on surface of perimeter and collide with layer.

◆Separated oil is stocked in a tank placed in bottom layer together with directing particles within the system. Flow of oil in desired direction can be ensured using 3/8 rotolock valve on bottom base.

◆No buoy system is available in the product.
