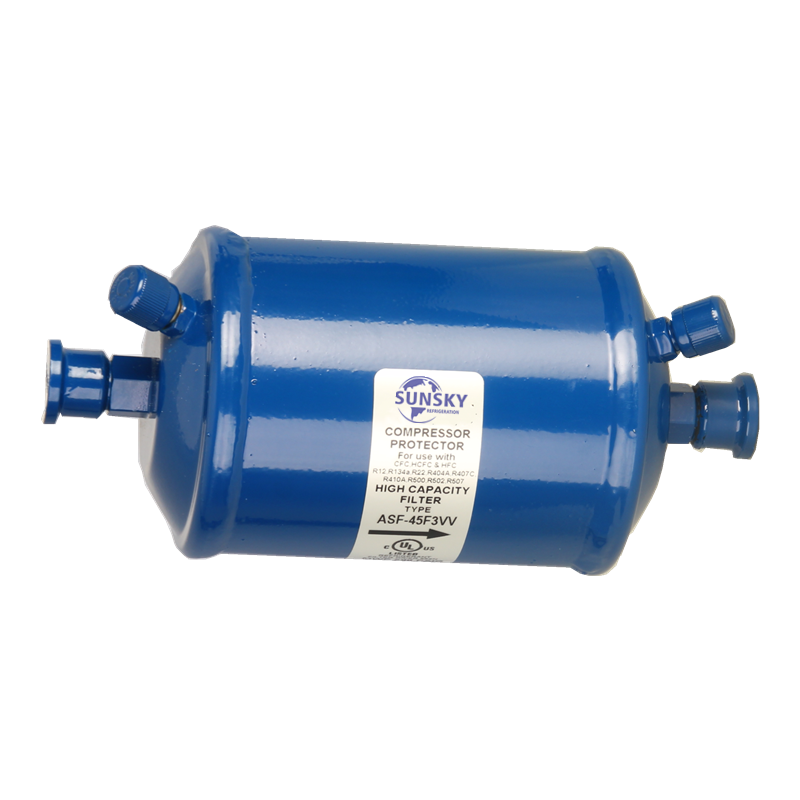

◆SN/ASF suction line filters are specifically designed to protect the compressor
from dirty and all solid contaminants.
◆Suction line filter for removing solid contaminants
◆ Corrosion resistant epoxy powder paint finish,Salty test up to 400 hour
◆ Dual access valves & Solid copper fittings
◆ S.S. Filtration: 40 microns
◆ Maximum working pressure: 500 psig

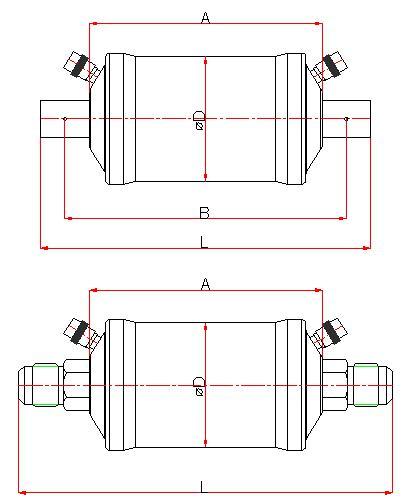

| 型号 MODEL | Connection 接口 | 尺寸 DIMENSIONS(mm) | 重量WT | ||||
| 英寸 (Inch) | 毫米（mm） | L | B | A | D | (Ibs) | |
| SN/ASF-11S4 | 1/2ODF | 12 | 111 | 86 | 73 | 66 | 1.50 |
| SN/ASF-11S5 | 5/8ODF | 16 | 118 | 86 | 73 | 64 | 1.50 |
| SN/ASF-28S7 | 7/8ODF | 22 | 165 | 127 | 105 | 64 | 2.00 |
| SN/ASF-28S9 | 1-1/8 ODF | 28 | 188 | 145 | 105 | 64 | 2.00 |
| SN/ASF-28S3-VV | 3/8ODF | 10 | 142 | 120 | 105 | 64 | 2.00 |
| SN/ASF-28S4-VV | 1/2ODF | 12 | 145 | 119 | 105 | 64 | 2.00 |
| SN/ASF-35F5-VV | 5/8SAE | 16 | 192 | - | 121 | 89 | 2.50 |
| SN/ASF-35S5-VV | 5/8ODF | 16 | 166 | 134 | 121 | 89 | 2.50 |
| SN/ASF-45F3-VV | 3/8SAE | 10 | 195 | - | 141 | 89 | 3.00 |
| SN/ASF-45S6-VV | 3/4ODF | 19 | 197 | 165 | 141 | 89 | 3.00 |
| SN/ASF-45S7-VV | 7/8ODF | 22 | 202 | 164 | 141 | 89 | 3.00 |
| SN/ASF-50S9-VV | 1-1/8ODF | 28 | 225 | 179 | 156 | 127 | 3.50 |
| SN/ASF-64S17-VV | 2-1/8ODF | 54 | 299 | 230 | 194 | 127 | 3.50 |
| SN/ASF-64S21-VV | 2-5/8ODF | 67 | 330 | 254 | 200 | 127 | 3.50 |
| SN/ASF-75S11-VV | 1-3/8ODF | 35 | 311 | 262 | 210 | 127 | 5.00 |
| SN/ASF-75S13-VV | 1-5/8ODF | 42 | 309 | 252 | 210 | 127 | 5.00 |
